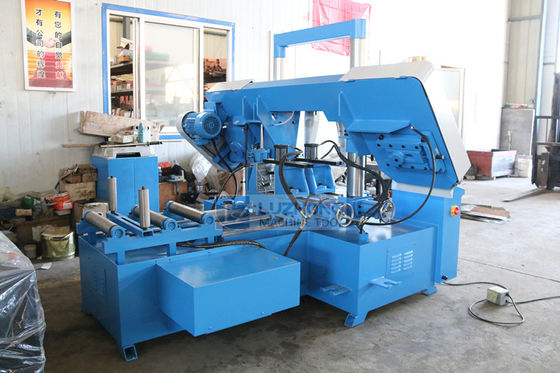

GHS4220 GHS4230 GHS4240 CNC Metal Cutting Band Saw Machine CNC

Product Details:

Place of Origin:	China
Brand Name:	LUZHONG MACHINE

Payment & Shipping Terms:

Price:	$6,900.00/Sets >=1 Sets
Packaging Details:	Plywood case <br>GHS4220 GHS4230 GHS4240 CNC Metal Cutting Band Sawing Machine
Supply Ability:	100 Set/Sets per Month GHS4220 GHS4230 GHS4240 CNC Metal Cutting Band Sawing Machine

Contact Now

Detailed Product Description

Condition:	New	Machine Type:	Band Saw Machine
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	13 Months
Core Components:	Pump, Engine, Motor	Showroom Location:	Indonesia, India, UAE
Warranty:	1 Year	Weight (KG):	1000
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant	Key Selling Points:	Competitive Price
Name:	GHS4220 GHS4230 GHS4240 CNC Metal Cutting Band Sawing Machine	Color:	Blue And White
After-sales Service Provided:	Video Technical Support, Online Support	After Warranty Service:	Video Technical Support, Online Support, Spare Parts
Local Service Location:	Indonesia, India, UAE	Port:	Any Port In China

Product Description

Feature :
extremely rigid dual-column cast-iron construction
Plc control for a fully automated sawing process
easy to use touch sreen monitor for easy and quick recording of saw parameters
The feed unit's linear measuring system ensure long term maximum accuracy
Feed of the saw frame is infinitely variable via a hydraulic throttle valve
extra rigid ,adjustable saw blade guide
hydraulic workpiece clamping with clamping pressure control and
bundle vise are included in the standard equipment
Standard equipment :
PLC control
1 saw blade belt
Hydraulic workpiece clamping
Bundle vise
Material support stand
Coolant system
Work lamp
Operation manual
Optional equipment:
automatic blade breakage control
Fast drop protection devise
Hydraulic blade tension
automatic chip removal device
Various blade linear speed
Blade protection covers
Wheel cover opening protection
Ce standard electrical equipment

Specifications	GHS4228	GHS4230	GHS4235	GHS4240
Sawing range	280-280×280mm	300-300×300mm	350-350×350mm	400-400×400mm
Blade speed	27,45,69m/min	27,45,69m/min	27,45,69m/min	27,45,69m/min
Blade size	3505×27×0.9mm	3505×27×0.9mm	4115×34×1.1mm	5000×41×1.3mm
Main motor power	2.2kW	3kW	4kW	5.5kW
Hydraulic motor power	0.75kW	0.75kW	0.75kW	0.75kW
Cooling pump power	0.09kW	0.09kW	0.09kW	0.09kW
Machine weight	1400kg	1500kg	1700kg	2100kg
Overall dimension	2000x2430x1650mm	2000x2450x1650mm	2250x2450x1650mm	2460x2320x2000mm
