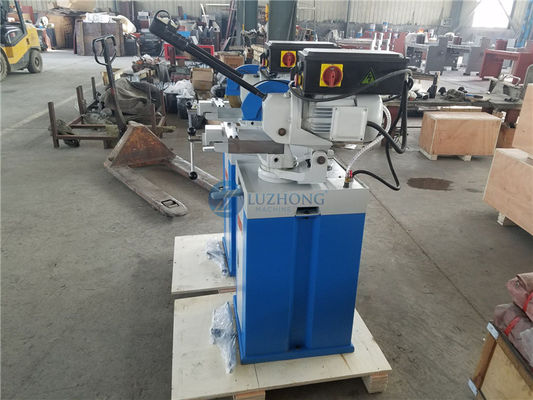

High Quality circular saw TV300 Cut off saw machine

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Luzhong
Certification:	CE ISO

Payment & Shipping Terms:

Price:	$1,200.00/Sets >=1 Sets
Packaging Details:	High Quality circular saw TV300 Cut off saw machine<br>Type of package: Plywood case<br>Packaging size: 98x62x90cm(body) 77x57x47cm(stand) CM(one set in one case)<br>N.W./G.W.: 115 KGS
Supply Ability:	500 Set/Sets per Month High Quality circular saw TV300 Cut off saw machine

Contact Now

Detailed Product Description

Condition:	New, New	Machine Type:	Circular Saw Machine
Showroom Location:	India, UAE	Warranty:	1 Year
Weight (KG):	105	Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, High Quality Circular Saw TV300 Cut Off Saw Machin
Key Selling Points:	Competitive Price	Weight:	105kg
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support	Dimension(LWH):	98X62X90 (body)
Voltage:	220V-415V, Optional	Rated Power:	4kW
Product Name:	High Quality Circular Saw TV300 Cut Off Saw Machine	Control System:	Electric
Color:	Optional	After Warranty Service:	Online Support
Local Service Location:	India, UAE	Power (kW):	4
Port:	Any Port Of China High Quality Circular Saw TV300 Cut Off Saw Machine

Specifications

the cutting off saw can rapidly fasten the working platform
Vice complete with anti-burr device
Abrasive cutting tool

Features
Can rapidly fasten the working platform
Vice complete with anti-burr device
Abrasive cutting tool
The grinding wheel cut
off machine is mainly used in architecture, metal, petrochemical, machine metallurgy and water and electricity installation, etc
Can be swiveled ±45°
Features quick cutting speed and high work efficiency.
It is suitable for cut-off the round, special pipe and all kinds of angle steel and flat steel.
The 24V low-voltage controlled hand switch is convenient for operation.
The safety hood of saw blade opens or closes according to the cutting needs, making it safety.

Technical parameters

Specification

Model			TV-300	TV-350	TV-400
Max. blade size			300mm(11.8”)	350mm(13.8”)	400mm (15.7”)
Capacity	Circular @90°	100mm(3.9”)	120mm(4.7”)	140mm(5.5”)
		Rectangular @90°	70x120mm(2.7”x4.7”)	80x120mm(3.1”x4.7”)	90x120mm(3.5”x4.7”)
		Circular @45°	90mm(3.5”)	105mm(4.1”)	120mm(4.7”)
		Rectangular @45°	70x90mm(2.7”x3.5”)	90x100mm(3.5”x3.9”)	90x110mm(3.5”x4.3”)
Blade speed @50HZ			5400rpm	4300rpm	3200rpm
Vice opening			190mm(7.5”)	190mm(7.5”)	220mm(8.6”)
Motor power			4kW 50/60HZ	4kW 50/60HZ	5.5kW 50/60HZ
Drive			Belt	Belt	Belt
Packing size			98x62x90cm(body) 77x57x47cm(stand)	98x62x95cm(body) 77x57x47cm(stand)	120x86x110cm(body) 63x55x78cm(stand)
N.W/G.W			105/115 kg	135/145 kg	235/285 kg

Details Display

Recommend Products

Company Profie

Collect stores and contact for coupons.

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
