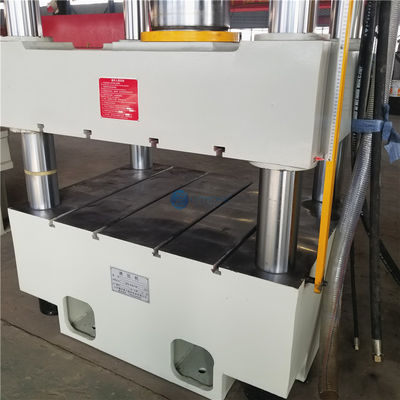

60 Ton Hydraulic Press YL32-60T Hydraulic Hot Press Machine For Doors

Product Details:

Place of Origin:	China
Brand Name:	Luzhong Machine
Certification:	CE ISO

Payment & Shipping Terms:

Price:	$4,560.00/Sets >=1 Sets
Packaging Details:	Machine Model: 60 Ton Hydraulic Press YL32-60T Hydraulic Hot Press Machine For Doors <br>Type of package: Plywood case <br>Packaging size: 200x150x300CM(one set in one case) <br>N.W./G.W.: 8000 KGS
Supply Ability:	100 Set/Sets per Month 60 Ton Hydraulic Press YL32-60T Hydraulic Hot Press Machine For

Contact Now

Detailed Product Description

Machine Type:	Four-column Two-beam Hydraulic Press	Return Force (kN):	200 KN
System:	Normal	Condition:	New
Voltage:	Customers' Requirements	Dimension(LWH):	200x150x300CM
Weight (T):	8000 T	Motor Power (kw):	7.5 Kw
Key Selling Points:	High Productivity	Warranty:	1 Year
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, 60 Ton Hydraulic Press YL32-60T Hydraulic Hot Pres	Showroom Location:	UAE
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	PLC	CNC Or Not:	Normal
Power Source:	Hydraulic	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Power(W):	7.5KW	Weight:	8000KG
Nominal Force KN:	600	Product Name:	60 Ton Hydraulic Press YL32-60T Hydraulic Hot Press Machine For Doors
Model:	YL32-60T	Keywords:	Hydraulic Press Price
Keywords2:	60 Ton Hydraulic Press	After Warranty Service:	Online Support
Local Service Location:	UAE	Nominal Force (kN):	600
Port:	Any Port In China 60 Ton Hydraulic Press YL32-60T Hydraulic Hot Press Machine For Doors

Specification

The main performance characteristics:
1. The host of the series of products using three beam four column structure, hydraulic system 100 tons below the use of plate
type integrated oil circuit,100 tons or more of the cartridge valve oil circuit, electrical system using relay or PLC control
circuit, centralized operation via an external button, can realize the adjustment and semi automatic operation mode. Whole machine
has the advantages of simple structure, compact structure, reasonable economy, reliable operation, long service life, small
hydraulic impact force, and reduced connection pipeline and leakage.
2. Work pressure of the series products, pressing speed, travel range can be adjusted according to the requirements within the
specified range, can achieve constant pressure and constant stroke of two kinds of Technology. When the constant pressure is
formed, the pressure holding time delay and the automatic return stroke are pressed. A top out device is arranged in the middle of
the working table, in addition to the top products, can be used as hydraulic cushion for the forming process of drawing parts.

Application:
For pressing process in all kinds of plastic materials, such as stamping, bending, flanging etc.. Also can be engaged in the
correction, compression, grinding wheel molding, plastic products, rubber products and powder products.

Product main technical specifications:

Specifications	Units	60t	100t	160t	200t	500t	630t
Nominal force	KN	600	1000	1600	2000	2500x2	3150x2
ejector force	KN	200	400	400	630	1000	1000
Max. working force of liquid	MPA	25	25	25	25	25	25
Slide stroke	mm	450	400	800	800	900	800
Ejection stroke	mm	200	200	300	300	300	300
Table effective size	mmxmm	580x500	800x800	1600x1200	1000x1000	2500x1400	1260x1200
Empty stroke descent speed	mm/s	100	120	120	130	120	130
Slow down speed	mm/s	25	35	30	30	25	30
Pressing speed	mm/s	9	10	15	12	6-10	9
Return speed	mm/s	80	80	90	80	70	80
Motor power	KW	5.5	7.5	11	15	37
