| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong machine |
| Certification: | CE ISO |
| Model Number: | CAK6180 |
| Price: | $13,500.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | The Package of our CNC Lathe machines is export standard plywood case with iron pallet below ,very strong and durable . <br>The CNC Lathe machine will be shipped to customers by land freight or sea freight . |
| Supply Ability: | 100 Set/Sets per Month China CNC Lathe Machine Flat Bed CNC Lathe Siemens CAK6180 |
| Condition: | New | Type: | Horizontal |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 3000 | Structure: | Flat Bed Lathe |
| Max. Spindle Speed (r.p.m): | 1500 R.p.m | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | 80 | Width Of Bed (mm): | 400 Mm |
| Spindle Motor Power(kW): | 11 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 400 Mm |
| Travel (Z Axis)(mm): | 3000 Mm | Positioning Accuracy (mm): | 0.01 Mm |
| Dimension(L*W*H): | 2750x1550x1900mm | Voltage: | 220V/380V |
| Tool Post Stations: | 8, 6, 4 | Weight (KG): | 2400 |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
| Key Selling Points: | Competitive Price | Showroom Location: | India |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

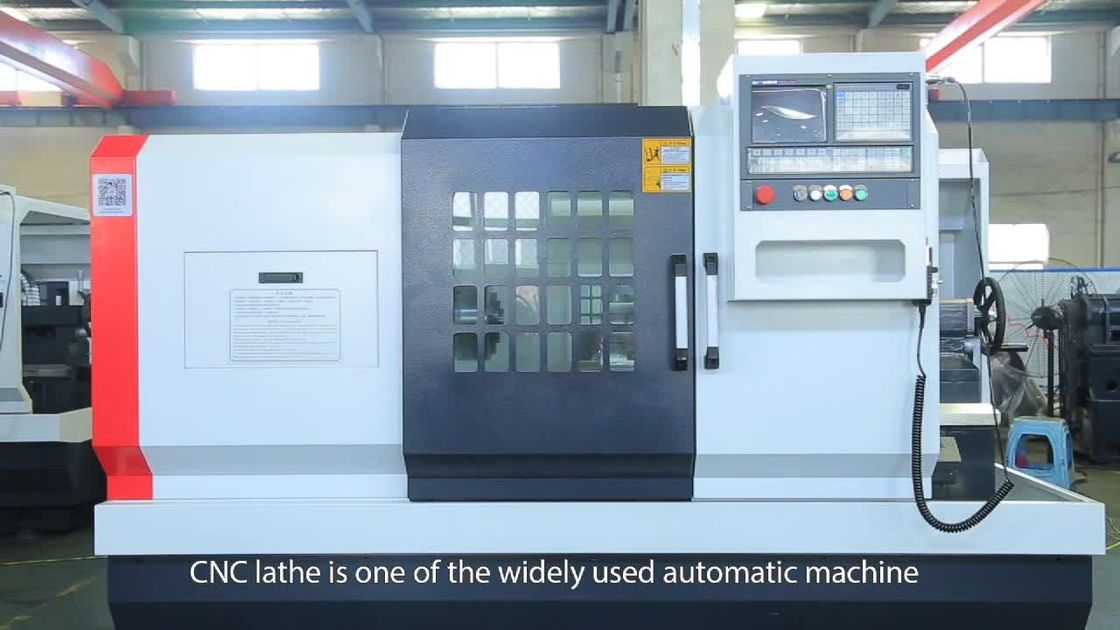

| Core Components: | Pump | Name: | China CNC Lathe Machine Flat Bed CNC Lathe Siemens CAK6180 |
| Spindle Bore:: | 52/80mm | Spinde Nose: | A2-8/11 |
| Maximum Processing Length: | 1000/1500/2000mm | X/Z Axis Travel: | X:300 Z:1000/1600/2000 |
| Max. Spindle Speed: | 1600rpm | Chuck Size: | 250/380(380)mm |
| Spindle Motor: | 11kw | X/Z Axis Position Accuracy: | ±0.006/300mm |
| X/Z Axis Repeatability: | ±0.005/300mm | After-sales Service Provided: | Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | India, UAE |
| Port: | Any Port In China |
Standard Configuration | Optional Configuration |
GSK980TC3 or GSK980TDC system Manual chuck,manual tailstock, 4 station electric tool post Manual three steps spindle speed | Siemens or Fanuc system Hydraulic chuck ,hydraulic tailstock 6 or 8 station turret Independent spindle Automatic chip conveyor |
SPECIFICATIONS | Units | CAK6180 CAK6180B CAK6180C |
Swing over bed | mm | 800 |
Swing over cross slide | mm | 520 |
Distance between centers | mm | 750/1000/1500/2000/3000 |
Spindle bore | mm | 52,(80 for B),[105 for C] |
Spindle bore taper | - | MT6,(φ90 1:20 for B),[φ113 1:20 for C] |
Spindle nose type | - | C6,(D8 for B),[D8 for C] |
Spindle speed steps | - | Manual 3 steps (Optional: stepless) |
Spindle speed range | rpm | 21-150,66-500,162-1500 (Optional: 100-1600 ) |

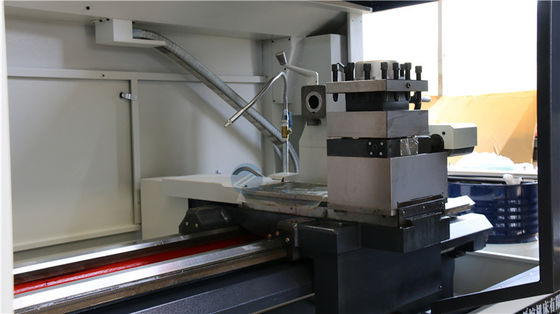

Turret/tool post | - | Eletric 4 position |
Tool size | mm | 25 x 25 |
X axis travel | mm | 400 |
Z axis travel | mm | 750/1000/1500/2000/3000 |
X axis rapid traverse | mm/min | 6000 |
Z axis rapid traverse | mm/min | 10000 |
Tailstock quill diameter | mm | 75 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 150 |
Main spindle motor | kw | 11 |
Coolant pump motor | kw | 0.125 |
Weight for 750 | kg | 2750 |
Weight for 1000 | kg | 2850 |
Weight for 1500 | kg | 2950 |
Weight for 2000 | kg | 3450 |
Weight for 3000 | kg | 4250 |
Dimension for 750 | mm | 2550x1750x1900 |
Dimension for 1000 | mm | 2750x1750x1900 |
Dimension for 1500 | mm | 3250x1750x1900 |
Dimension for 2000 | mm | 3700x1750x1900 |
Dimension for 3000 | mm | 4710x1750x1900 |
