| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong |
| Model Number: | CK6140 |
| Price: | $11,650.00/Sets >=1 Sets |
|---|---|

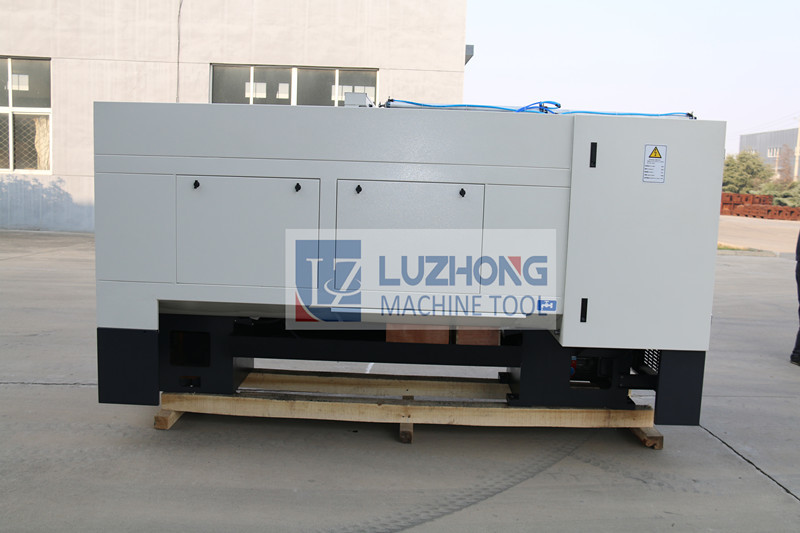

| Packaging Details: | The Package of cnc turning lathe is export standard plywood case with iron pallet below ,very strong and durable .<br>The cnc turning lathe will be shipped to customers by land freight or sea freight . |
| Supply Ability: | 100 Set/Sets per Month Cheap Flat Bed CNC Lathe Machine Price CK6140 CNC Turning Lathe |
| Condition: | New | Type: | Horizontal |
|---|---|---|---|
| Year: | 2019 | Max. Length Of Workpiece (mm): | 1000 Mm |
| Structure: | Flat Bed Lathe | Max. Spindle Speed (r.p.m): | 1800 R.p.m |
| Machining Capacity: | Medium Duty | Spindle Bore(mm): | 52 M'm |
| Width Of Bed (mm): | 400 Mm | Spindle Motor Power(kW): | 5.5 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 240 Mm | Travel (Z Axis)(mm): | 1000 Mm |
| Positioning Accuracy (mm): | 0.01 Mm | Voltage: | 380V/220V |
| Tool Post Stations: | 4 | Weight (KG): | 1800 |
| Warranty: | 13 Months | Applicable Industries: | Manufacturing Plant |
| Key Selling Points: | Competitive Price | Showroom Location: | Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 13 Months |
| Core Components: | Motor | Name: | Cheap CNC Lathe Price CK6140 Flat Bed CNC Lathe Machine For Sale |
| Spindle Bore: | 52(82)mm | Maximum Length Of Workpiece: | 750.1000.1500.2000mm |
| Max.swing Over Cross Slide: | 220mm | Spindle Nose: | ISO-C6(C8) |
| Spindle Tap: | MT6 | Z-axis Stroke: | 750.1000.1500.2000mm |
| X-axis Stroke: | 330mm | Dia.of Tailstock Sleeve: | 75mm |
| Taper Of Tailstock Sleeve: | MT5 | Port: | Any Port In China |
|
Standard Configuration
|
Optional Configuration
|
|
GSK980TB3 or GSK980TDC system
Manual chuck,manual tailstock, 4 station electric tool post Low-high two steps spindle speed |
Siemens orFanuc system
Hydraulic chuck ,hydraulic tailstock 6 or 8 station turret Automatic chip conveyor |
|
SPECIFICATIONS
|
Units
|
CK6140D
|
|
Swing over bed
|
mm
|
400
|
|
Swing over cross slide
|
mm
|
180
|
|
Distance between centers
|
mm
|
750/1000/1500/2000
|
|
Spindle bore
|
mm
|
52
|
|
Spindle bore taper
|
-
|
MT6
|
|
Spindle nose type
|
-
|
C6
|
|
Spindle speed steps
|
-
|
Manual 2 steps
|
|
Spindle speed range
|
rpm
|
L:70-700 H:160-1600
|
|
Turret/tool post
|
-
|
Electric 4 position
|
|
Tool size
|
mm
|
20 x 20
|
|
X axis travel
|
mm
|
240
|
|
Z axis travel
|
mm
|
750/1000/1500/2000
|
|
X axis rapid traverse
|
mm/min
|
6000
|
|
Z axis rapid traverse
|
mm/min
|
8000
|
|
Tailstock quill diameter
|
mm
|
65
|
|
Tailstock quill taper
|
-
|
MT4
|
|
Tailstock quill travel
|
mm
|
140
|
|
Main spindle motor
|
kw
|
5.5
|
|
Coolant pump motor
|
kw
|
0.125
|
|
Weight for 750
|
kg
|
1700
|
|
Weight for 1000
|
kg
|
1800
|
|
Weight for 1500
|
kg
|
2000
|
|
Weight for 2000
|
kg
|
2200
|
|
Dimension for 750
|
mm
|
2200x1600x1700
|
|
Dimension for 1000
|
mm
|
2600x1600x1700
|
|
Dimension for 1500
|
mm
|
3000x1600x1700
|
|
Dimension for 2000
|
mm
|
3500x1600x1700
|
