| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong machine |
| Model Number: | CAK6150 |
| Price: | $13,500.00/Sets 1-4 Sets |
|---|---|
| Packaging Details: | Plywood case <br>New Numerical Control CAK6150 CNC Lathe Machine Price |
| Supply Ability: | 100 Set/Sets per Month New Numerical Control CAK6150 CNC Lathe Machine Price |
| Condition: | New | Type: | Horizontal |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 1500 | Structure: | Flat Bed Lathe |
| Max. Spindle Speed (r.p.m): | 1500 R.p.m | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | 52 | Width Of Bed (mm): | 400 Mm |
| Spindle Motor Power(kW): | 7.5 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 250 Mm |
| Travel (Z Axis)(mm): | 1500 Mm | Positioning Accuracy (mm): | 0.01 Mm |
| Dimension(L*W*H): | 2750x1550x1700MM | Voltage: | 220V/380V |
| Tool Post Stations: | 8, 6, 4 | Weight (KG): | 2850 |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
| Key Selling Points: | Competitive Price | Showroom Location: | India, UAE |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | New Numerical Control CAK6150 CNC Lathe Machine Price |
| CNC Or Not: | CNC | Automatic Grade: | Automatic |
| Spindle Bore: | 52(80 For B)[105 For C] | Max.processing Length: | 1000/1500/2000mm |
| Spindle Nose: | C6(D8)[D8] | Max. Spindle Speed: | 21-1500rpm |
| Spindle Motor: | 7.5kw | Spindle Taper: | MT6 (90 1:20 For B)[113 1:20 For C] |
| Tailstock Taper: | MT5 | Port: | Any Port In China |
Standard Configuration | Optional Configuration |

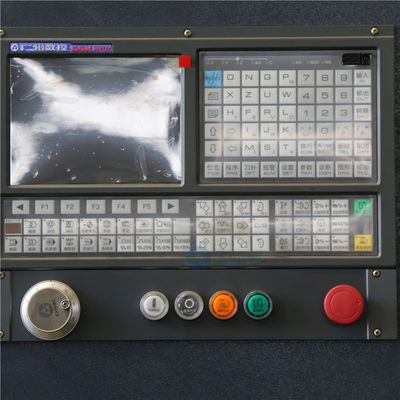

GSK980TC3 or GSK980TDC system Manual chuck,manual tailstock, 4 station electric tool post Manual three steps spindle speed | Siemens or Fanuc system Hydraulic chuck ,hydraulic tailstock 6 or 8 station turret Independent spindle Automatic chip conveyor |
SPECIFICATIONS | Units | CAK6150 CAK6150B CAK6150C |
Swing over bed | mm | 500 |
Swing over cross slide | mm | 280 |
Distance between centers | mm | 750/1000/1500/2000/3000 |
Spindle bore | mm | 52,(80 for B),[105 for C] |
Spindle bore taper | - | MT6,(φ90 1:20 for B),[φ113 1:20 for C] |
Spindle nose type | - | C6,(D8 for B),[D8 for C] |
Spindle speed steps | - | Manual 3 steps (Optional: stepless) |
Spindle speed range | rpm | 21-150,66-500,162-1500 (Optional: 100-1600 ) |
Turret/tool post | - | Electric 4 position |
Tool size | mm | 25 x 25 |
X axis travel | mm | 250 |
Z axis travel | mm | 750/1000/1500/2000/3000 |
X axis rapid traverse | mm/min | 6000 |
Z axis rapid traverse | mm/min | 10000 |
Tailstock quill diameter | mm | 75 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 150 |
Main spindle motor | kw | 7.5 |
Coolant pump motor | kw | 0.125 |
Weight for 750 | kg | 2500 |
Weight for 1000 | kg | 2600 |
Weight for 1500 | kg | 2700 |
Weight for 2000 | kg | 3150 |
Weight for 3000 | kg | 3950 |
Dimension for 750 | mm | 2550x1650x1750 |
Dimension for 1000 | mm | 2750x1650x1750 |
Dimension for 1500 | mm | 3250x1650x1750 |
Dimension for 2000 | mm | 3700x1650x1750 |
Dimension for 3000 | mm | 4710x1650x1750 |
