| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong Machine |
| Certification: | CE ISO |
| Model Number: | CK6140D CK6150D |
| Price: | $10,300.00/Sets 1-4 Sets |
|---|---|
| Packaging Details: | The Package of cnc lathe machine is export standard plywood case with iron plate below ,very strong and durable .<br>The cnc lathe machine will be shipped to customers by land freight or sea freight . |
| Supply Ability: | 100 Set/Sets per Month Horizontal Flat Bed CK6136 CK6140 CK6150 Lathe CNC Machine |
| Condition: | New | Type: | Horizontal |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 1500 | Structure: | Flat Bed Lathe |
| Max. Spindle Speed (r.p.m): | 1600 R.p.m | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | 52 | Width Of Bed (mm): | 360 Mm |
| Spindle Motor Power(kW): | 4/5.5 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 240 Mm |
| Travel (Z Axis)(mm): | 1500 Mm | Positioning Accuracy (mm): | 0.01 Mm |
| Dimension(L*W*H): | 2500X1500X1650MM | Voltage: | 220V/380V |
| Tool Post Stations: | 8, 6, 4 | Weight (KG): | 1400 |
| Warranty: | 13 Months | Applicable Industries: | Manufacturing Plant |
| Key Selling Points: | Automatic | Showroom Location: | India, Chile, UAE |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 13 Months |

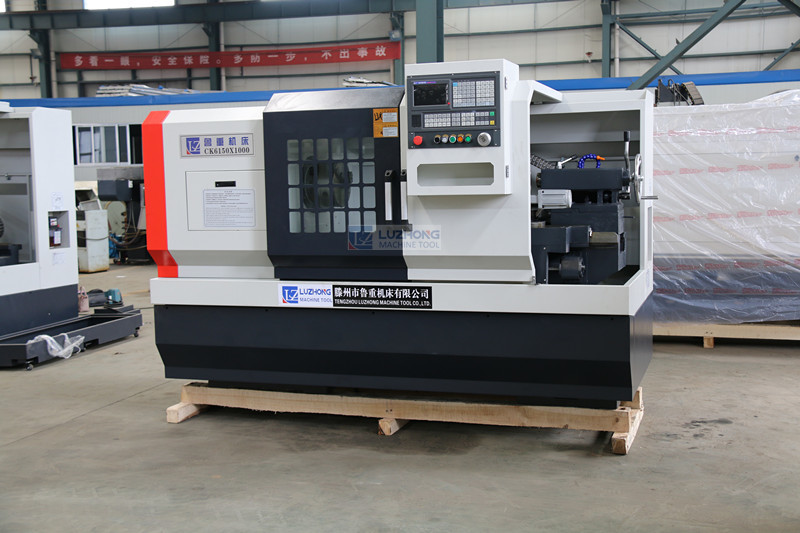

| Core Components: | Engine | Name: | Horizontal Flat Bed CK6140D CK6150D Lathe CNC Machine |
| Max.swing Over Bed: | 400/500mm | Spindle Bore: | 52/80mmmm |
| Distance Between Centers: | 750/1000/1500/2000mm | Spindle Nose: | C6 |
| Spindle Taper: | MT6 | Spindle Speed: | L:100-500 H:500-1800 |
| X Axis Travel: | 220mm | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | Chile, UAE | Port: | Any Port In China |
|
Standard Configuration
|
Optional Configuration
|
|
GSK980TB3 or GSK980TDC system
Manual chuck,manual tailstock, 4 station electric tool post Low-high two steps spindle speed |
Siemens or Fanuc system
Hydraulic chuck ,hydraulic tailstock 6 or 8 station turret Independent spindle Automatic chip conveyor |
|
SPECIFICATIONS
|
Units
|
CK6140
|
CK6150
|
|
Swing over bed
|
mm
|
400
|
500
|
|
Swing over cross slide
|
mm
|
210
|
260
|
|
Distance between centers
|
mm
|
750/1000/1500/2000
|
750/1000/1500/2000
|
|
Spindle bore
|
mm
|
52(Optional 80)
|
52(Optional 80)
|
|
Spindle bore taper
|
-
|
MT6
|
MT6
|
|
Spindle nose type
|
-
|
C6
|
C6
|
|
Spindle speed steps
|
-
|
Manual 2 steps
|
Manual 2 steps
|
|
Spindle speed range
|
rpm
|
L:100-500 H:500-1800 (Optional 90-1800 stepless)
|
L:100-500 H:500-1800 (Optional 90-1800 stepless)
|
|
Turret/tool post
|
-
|
Electric 4 position
|
Electric 4 position
|
|
Tool size
|
mm
|
25 x 25
|
25 x 25
|
|
X axis travel
|
mm
|
230
|
280
|
|
Z axis travel
|
mm
|
750/1000/1500/2000
|
750/1000/1500/2000
|
|
X axis rapid traverse
|
mm/min
|
6000
|
6000
|
|
Z axis rapid traverse
|
mm/min
|
8000
|
8000
|
|
Tailstock quill diameter
|
mm
|
65
|
65
|
|
Tailstock quill taper
|
-
|
MT4
|
MT5
|
|
Tailstock quill travel
|
mm
|
130
|
130
|
|
Main spindle motor
|
kw
|
4
|
5.5
|
|
Coolant pump motor
|
kw
|
0.09
|
0.09
|
|
Weight for 750
|
kg
|
1700
|
1800
|
|
Weight for 1000
|
kg
|
1800
|
1900
|
|
Weight for 1500
|
kg
|
1900
|
2000
|
|
Weight for 2000
|
kg
|
2000
|
2100
|
|
Dimension for 750
|
mm
|
2200x1650x1700
|
2200x1700x1750
|
|
Dimension for 1000
|
mm
|
2500x1650x1700
|
2500x1700x1750
|
|
Dimension for 1500
|
mm
|
3000x1650x1700
|
3000x1700x1750
|
|
Dimension for 2000
|
mm
|
3500x1650x1700
|
3500x1700x1750
|
