| Place of Origin: | Shandong, China |
| Brand Name: | LUZHONG |
| Certification: | CE/ISO |
| Model Number: | QK1319 |
| Price: | $28,200.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | Machine model:turn lathe QK1319 big dia lathe machine lathe 1.5 meter heavy duty<br>Package:one machine with one plywood case and steel set below |
| Supply Ability: | 100 Set/Sets per Month turn lathe QK1319 big dia lathe machine lathe 1.5 meter heavy du |
| Condition: | New | Type: | Horizontal |
|---|---|---|---|
| Year: | 2020 | Max. Length Of Workpiece (mm): | 1000 |
| Structure: | Flat Bed Lathe | Max. Spindle Speed (r.p.m): | 550 R.p.m |
| Machining Capacity: | Medium Duty | Spindle Bore(mm): | 200 |
| Width Of Bed (mm): | 550 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 320 Mm | Travel (Z Axis)(mm): | 850 Mm |
| Dimension(L*W*H): | 3300x1880x1850 | Voltage: | 220v/380v |
| Tool Post Stations: | 4 | Weight (KG): | 4600 |
| Warranty: | 13 Months | Applicable Industries: | Manufacturing Plant |
| Key Selling Points: | Competitive Price | Showroom Location: | Indonesia, Russia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 13 Months |

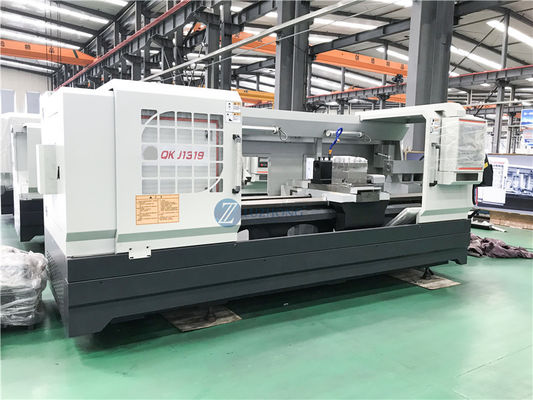

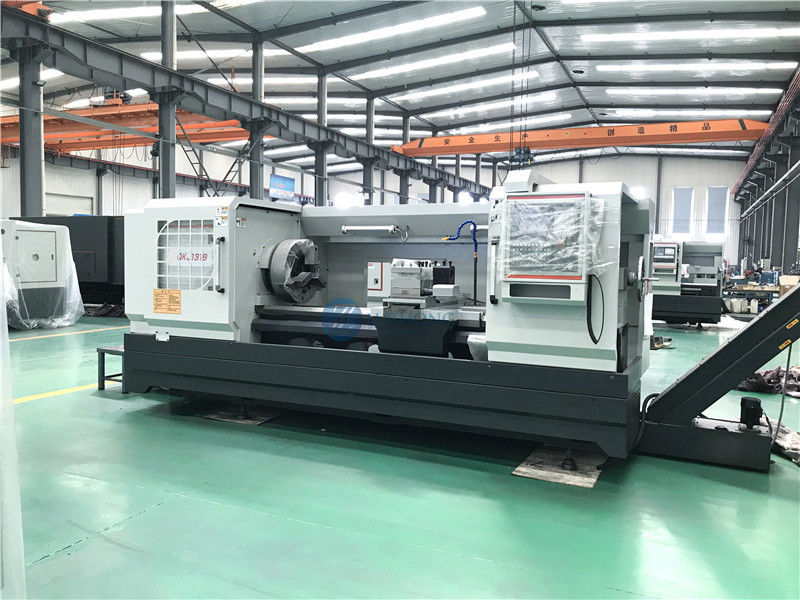

| Core Components: | Motor | Product Name: | Turn Lathe QK1319 Big Dia Lathe Machine Lathe 1.5 Meter Heavy Duty |
| Color: | Customer Optional | Packing: | Plywood Case |
| Swing Over Bed: | 630mm | Swing Over Cross Slide: | 340mm |
| Distance Between Centers: | 1000/1500/3000mm | Spindle Bore: | 200mm |
| Max. Swing Diameter (mm): | 630 | After Warranty Service: | Video Technical Support, No Service, Online Support |
| Local Service Location: | Indonesia, Russia | Port: | Qingdao Port |
|
SPECIFICATION
|
Units
|
QK1319
|
|
|
|
Swing over bed
|
mm
|
630/800
|
|
|
|
Swing over cross slide
|
mm
|
340/520
|
|
|
|
Distance between centers
|
mm
|
1000/1500/3000
|
|
|
|
Pipe threading range
|
mm
|
50-193
|
|
|
|
Guideway width
|
mm
|
550
|
|
|
|
Max. load capacity
|
T
|
3
|
|
|
|
Spindle bore
|
mm
|
200
|
|
|
|
Spindle speed steps
|
-
|
VF. 4 steps
|
|
|
|
Spindle speed range
|
rpm
|
20-550
|
|
|
|
Chuck
|
mm
|
φ500 3-jaw manual
|
|
|
|
Turret/tool post
|
-
|
CNC turret 4 position
|
|
|
|
Tool shank size
|
mm
|
32 x 32
|
|
|
|
X axis travel
|
mm
|
320/420
|
|
|
|
Z axis travel
|
mm
|
850/1350/2850
|
|
|
|
X axis rapid traverse
|
mm/min
|
4000
|
|
|
|
Z axis rapid traverse
|
mm/min
|
6000
|
|
|
|
Tailstock quill diameter
|
mm
|
φ100
|
|
|
|
Tailstock quill taper
|
-
|
MT5
|
|
|
|
Tailstock quill travel
|
mm
|
250
|
|
|
|
Main spindle motor
|
kW
|
11
|
|
|
|
Coolant pump motor
|
kW
|
0.125
|
|
|
|
Weight for 1000
|
kg
|
4600
|
|
|
|
Weight for 1500
|
kg
|
5100
|
|
|
|
Weight for 3000
|
kg
|
6100
|
|
|
|
Dimension for 1000
|
mm
|
3300x1880x1850
|
|
|
|
Dimension for 1500
|
mm
|
3800x1880x1850
|
|
|
|
Dimension for 3000
|
mm
|
5300x1880x1850
|
|
|
