The main performance characteristics:
Taiwan higher accuracy linear guide ways
8 station Hydraulic hydraulic turret
8’’ hydraulic chuck
Hydraulic tailstock
Automatic coolant system
Automatic lubrication system
Chip conveyor as optional
 |
| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong Machine Tool |
| Certification: | CE |
| Model Number: | TC500 |
| Price: | $12,990.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | The Package of CNC Lathe is export standard plywood case with iron pallet below ,very strong and durable . <br>The cnc turning machine will be shipped to customers by land freight or sea freight . |
| Supply Ability: | 100 Set/Sets per Month CNC turning center with price slant bed mazak cnc lathe |
| Condition: | New | Type: | TURNING CENTER |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 550 Mm | Max. Spindle Speed (r.p.m): | 4500 R.p.m |
| Machining Capacity: | Heavy Duty | Spindle Bore(mm): | 65 M'm |
| Width Of Bed (mm): | 400 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Max. Turned Length (mm): | 550 |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 500 Mm |
| Travel (Z Axis)(mm): | 550 Mm | Dimension(L*W*H): | 2300x1500x1750mm |
| Voltage: | 380V | CNC Control System: | GSK |
| Tool Post Stations: | 12, 8 | Weight (KG): | 2500 |
| Warranty: | 1 Year | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Factory |
| Key Selling Points: | Competitive Price | Showroom Location: | Indonesia, Russia, UAE |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

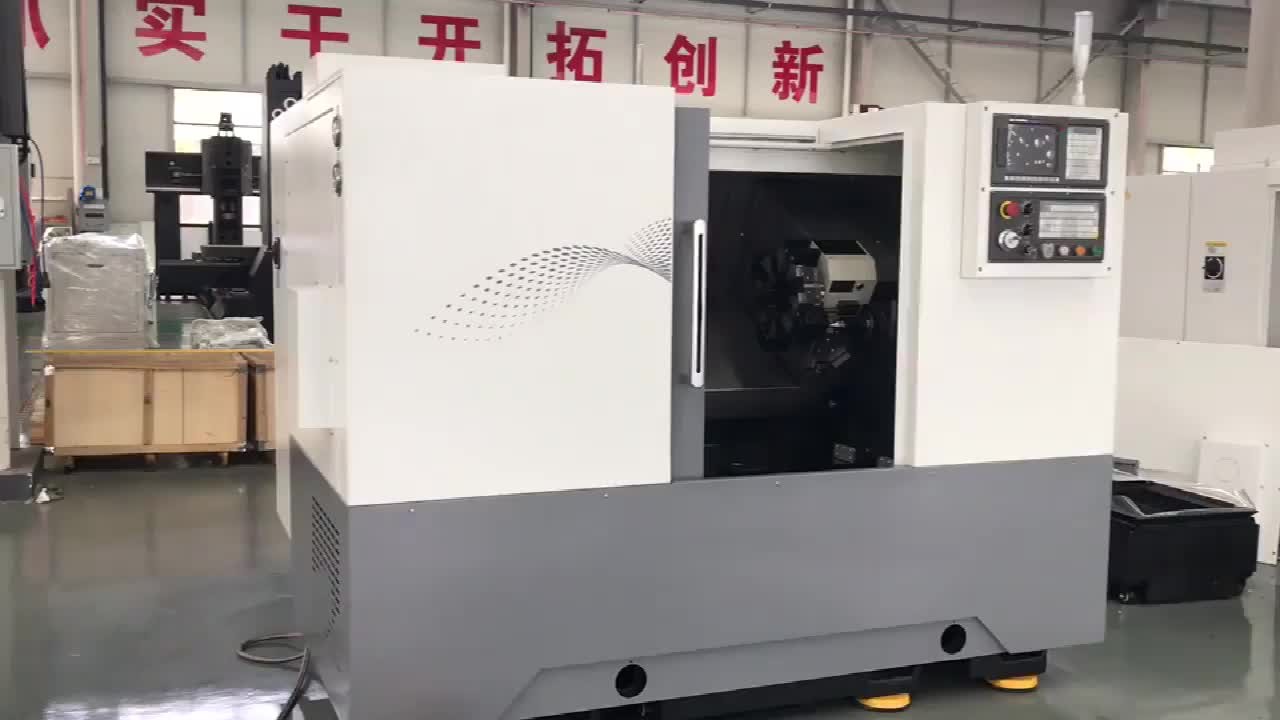

| Core Components: | Bearing, Motor | Name: | TC500 CNC Turning Center With Price Slant Bed Mazak Cnc Lathe |
| Max.swing Over Bed: | 500mm | Max.swing Over Cross Slide: | 300mm |
| Max.workpiece Length: | 550mm | Chuck Size: | 8in |
| Spindle Speeds: | 4500rpm | Spindle Bore: | 65 Mm |
| Spindle Nose: | A2-6 | Dbe3ed: | 45° Inclined Guide Rail |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Indonesia, Russia, UAE | Max. Swing Diameter (mm): | 500 Mm |
| Port: | Any Port In China |
Specification | Unit | TC500 |
Max.swing over bed | mm | 500 |
Center Distance | MM | 500 |
Max.swing over cross slide | mm | 300 |
Max machining diameter | mm | 360 |
Standard cutting diameter | mm | 240 |
X/Z axis max.travel | mm | 200/550 |
Spindle taper | A2-6 | |
Spindle bore | mm | 65 |
Max.spindle speed | rpm | 50-4500 Stepless |
Chuck | in | 8’’(10’’ as optional) |
Spindle motor power | kw | 11 |
X/Z axis Position accuracy | mm | +/-0.008 |
X/Z axis Repeatability accuracy | mm | +/-0.004 |
X/Z rapid traverse | m/min | 30 |
Tailstock travel | mm | 450 |
Quill travel | mm | 100 |
Tailstock taper | MT5 | |
Tool post type | mm | 8 station hydraulic turret |
Tool post size | mm | 25x25 |
Guide form | 30° degree | |
Guide rail movement way | Linear guide rail | |
Max weight of Disk type workpiece | kg | 200 |
Max weight of shaft type workpiece | kg | 500 |
Machine dimensions(L*W*H) | mm | 2300x1700x1930 |
Weight | kg | 3600 |
