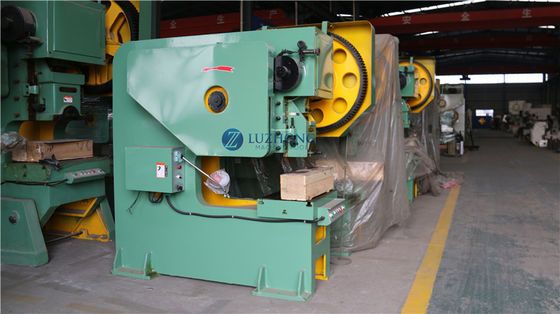

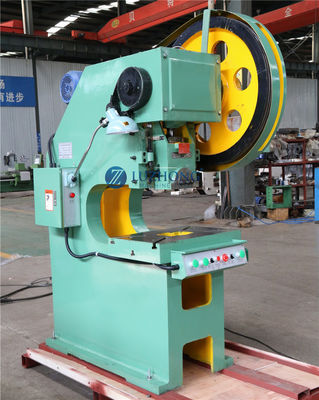

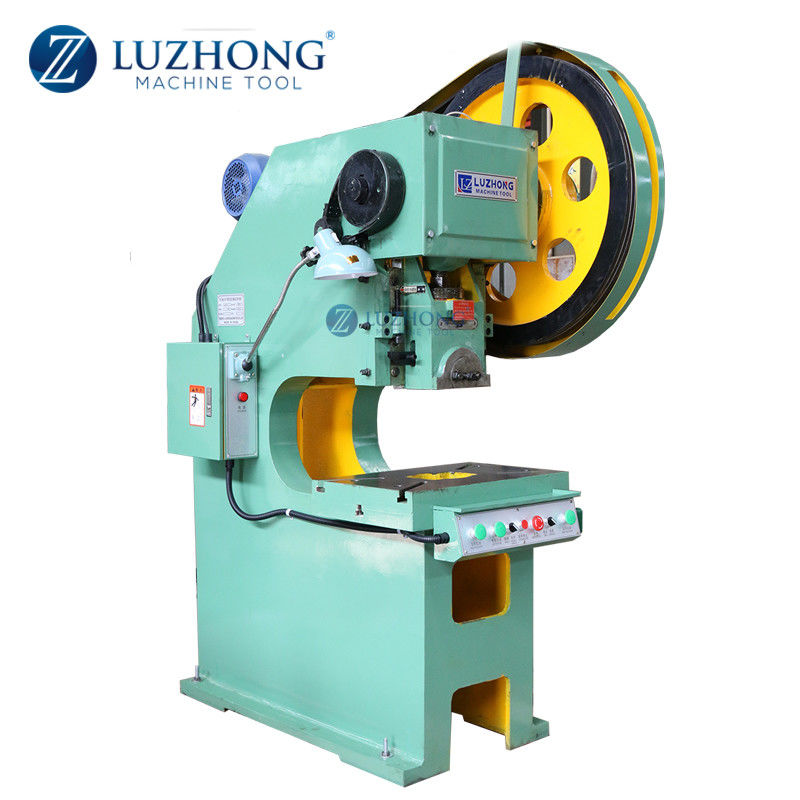

Steel Punching Machine J21S -16 J21S -25 Power Press Machine

Name: Steel Punching Machine J21S -16 J21S -25 Power Press Machine
Brand: Luzhong
SKU: J21S -16 J21S -25
Price: 3 USD
Availability: InStock
Rating: 4.6 (183 reviews)

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Luzhong
Certification:	CE ISO9001
Model Number:	J21S -16 J21S -25

Payment & Shipping Terms:

Price:	$3,990.00/Sets 1-9 Sets
Packaging Details:	Machine model:Steel Punching Machine J21S -16 J21S -25 Power Press Machine<br>Package:one machine with one plywood case and steel set below
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

CNC Or Not:	Normal	Condition:	New
Machine Type:	Punching Machine	Slide Stroke (mm):	70
Power Source:	Hydraulic, Mechanical	Voltage:	380/220V, 220v/380v
Dimension(LWH):	14508001950mm	Motor Power (kW):	3
Weight (T):	2.4	Key Selling Points:	Competitive Price
Warranty:	13 Months	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops
Showroom Location:	Indonesia, UAE	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	13 Months	Core Components:	Motor
Name:	J21S -16 J21S -25 Power Press Machine	Weight:	1920kg
Nominal Pressure:	160KN	Nominal Force Stroke:	2mm
Slider Stroke:	70mm	After-sales Service Provided:	Online Support
Port:	Any Port In China

Products Description

The main performance characteristics：

Band brake,convenient adjustment Large throat suitable for large workpiece Simple structure ,easy maintenance and operation Economic press Structure : “C” frame with inclinable body ,can slide the material and scrap easily Made of cast iron body with stable performance Horizontal crankshaft ,easy maintenance Rigid rotated bond clutch ,simple structure Rigid pressing down style overload protector ,avoid damage when overload Application： 1, Suitable for blanking, punching, forming, curving ,flat stretching of punch & press function 2.widely used to electric component ,instrument and apparatus ,tools and hardware ,toy,car,machinery ,agriculture equipment

Specification			Units	J21S-16	J21S-25	J21S-25B	J21S-40	J21S-63	J21S-63A
Nominal pressure			KN	160	250	250	400	630	630
Nominal force stroke			mm	2	2.5	2.5	4	4	4
Slider stroke			mm	70	70	90	80	80	80
Number of slider stroke			N/min	110	65	120	50	50	50
Maximum die set height			mm	170	200	200	230	250	300
Die set height adjustment			mm	30	30	40	45	50	50
Distance from slider center to frame			mm	500	500	500	500	600	600
Worktable dimension(length x width)			mm	400x600	400x600	400x600	420x650	440x670	470x750
Working table size			mm	φ120	φ130	φ130	φ180	φ180	φ180
Thickness of the worktable panel			mm	50	50	70	70	70	80
Slider ground size (length x width)			mm	180x220	170x220	200x220	210x250	240x280	270x300
Size of the handle hole (diameter x depth)			mm	φ40x60	φ40x60	φ40x60	φ50x70	φ50x70	φ50x70
Vertical columns distance			mm	200	250	250	250	320	3900
Main motor	Model		Y100L-6	Y100L-4	Y132S-6	Y112M-4	Y132S-4	Y132S-4
Main motor		Power	KW	2.2	3	3	4	5.5	5.5
Overall dimension(L x W x H)			mm	1400X780X1950	1450X800X1950	1470X900X2100	1650X1100X2320	1750X1200X2350	1850X1180X2480
Weight			Kg	1920	2410	2600	3530	4250	4650
