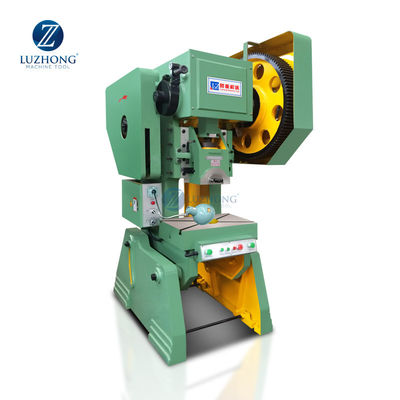

Press Machine JB23 Series Open Type Inclinable Punching Machine

Name: Press Machine JB23 Series Open Type Inclinable Punching Machine
Brand: Luzhong Machine
SKU: JB23
Price: 7 USD
Availability: InStock
Rating: 4.7 (158 reviews)

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Luzhong Machine
Certification:	CE ISO
Model Number:	JB23

Payment & Shipping Terms:

Price:	$7,400.00/Sets 1-4 Sets
Packaging Details:	Plywood case<br>Press Machine JB23 Series Open Type Inclinable Punching Machine
Supply Ability:	10 Set/Sets per Month Press Machine JB23 Series Open Type Inclinable Punching Machine

Contact Now

Detailed Product Description

CNC Or Not:	Normal	Condition:	New, New
Machine Type:	Punching Machine	Power Source:	Mechanical, Mechanical
Voltage:	220V/380V	Dimension(LWH):	1765X1265X2560mm
Weight (T):	1.09	Key Selling Points:	Competitive Price
Warranty:	1 Year	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops
Showroom Location:	Indonesia, India, UAE	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Pump, Motor, Engine
Name:	Press Machine JB23 Series Open Type Inclinable Punching Machine	Nominal Pressure:	160-1000KN
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	Indonesia, India, UAE
Port:	Any Port In China

Product Description

Specification

Specification			Units	JB23-16	JB23-25	JB23-40	JB23-63	JB23-63A	JB23-80	JB23-100
Nominal pressure			KN	160	250	400	630	630	800	1000
Nominal force stroke			mm	2	2.5	4	4	4	5	5
Slider stroke			mm	50	70	80	80	80	100	100
Number of slider stroke			times/min	140	65	50	50	50	50	40
Maximum die set height			mm	170	200	230	250	300	300	300
Die set height adjustment			mm	30	30	45	50	50	60	80
Distance from slider center to frame			mm	160	200	220	250	250	260	310
Worktable dimension			mm	320x460	350x260	390x630	420x650	470x750	470x750	570x860
Thickness of the worktable panel			mm	45	50	70	70	80	80	90
Size of the handle hole (diameter x depth)			mm	φ40x60	φ40x60	φ50x70	φ50x70	φ50x70	φ60x80	φ60x80
Vertical columns distance			mm	240	240	330	320	390	300	420
Main motor	Model		Y90L-4	Y100L-4	Y112M-4	Y132S-4	Y132S-4	Y132S-4	Y132M-4
Main motor		Power	KW	1.5	3	4	5.5	5.5	5.5	7
Maximum tilting angle of body			°	25	25	25	25	25	20	20
Overall dimension(LxWxH)			mm	1130X830X1890	1120X860X2200	1600X1100X2250	1740X1100X2560	1740X1180X2560	1765X1265X2560	1940X1490X2850
Weight			Kg	1090	2100	2960	3800	4300	5015	6120

Details Display

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
