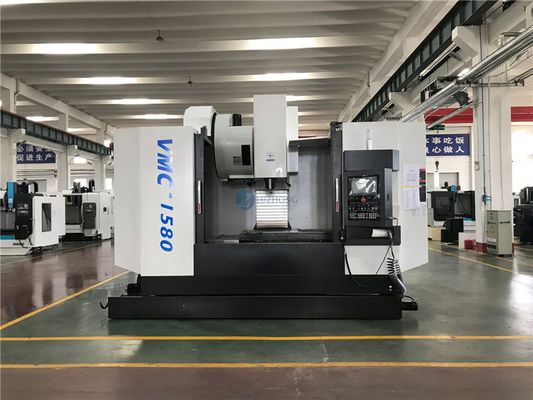

High Precision Tabletop Cnc Mill VMC1580 4 Axis/5 Axis

Product Details:

Place of Origin:	China
Brand Name:	LUHZONG MACHINE
Certification:	CE ISO

Payment & Shipping Terms:

Price:	$71,000.00/Sets >=1 Sets
Packaging Details:	High Precision Milling VMC1580 4 Axis/5 Axis Cnc Milling Machine Price<br>Type of package: Plywood case<br>Packaging size: 426325294CM(one set in one case)<br>N.W./G.W.: 13000/14000KGS
Supply Ability:	100 Set/Sets per Month High Precision Milling VMC1580 4 Axis/5 Axis Cnc Milling Machine

Contact Now

Detailed Product Description

Condition:	New	No. Of Spindles:	Single
Type:	VERTICAL	Dimension(LWH):	426325294CM
Weight (T):	14 T	CNC Control System:	KND
Number Of Axes:	12	Table Travel (X) (mm):	1600 Mm
Table Travel (Y) (mm):	800 Mm	Table Travel (Z) (mm):	700 Mm
Positioning Accuracy (mm):	0.05	Repeatability (X/Y/Z) (mm):	0.03
Spindle Motor Power(kW):	15	Max. Table Load(kg):	1500 Kg
Min. Time Of Tool Change(s):	3	Tool Magazine Capacity:	24
Key Selling Points:	Automatic	Warranty:	1 Year
Voltage:	380V	Applicable Industries:	Manufacturing Plant
Showroom Location:	UAE	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Bearing
After-sales Service Provided:	No Overseas Service Provided	Spindle Taper:	BT50/190
Power(W):	15/18.5kw	Weight:	14000kg
Name:	High Precision Milling VMC1580 4 Axis/5 Axis Cnc Milling Machine Price	After Warranty Service:	Online Support
Local Service Location:	UAE	Port:	China High Precision Milling VMC1580 4 Axis/5 Axis Cnc Milling Machine Price

Standard configuration:
1.The CNC system: FANUC 0i mate MD
2.The high quality castings: Resin sand casting
3.The spindle: Taiwan famous high speed spindle
4.The screw: HIWIN
5.The knife: The famous Taiwan bamboo hat knife.
6.The unclamping cylinder: Taiwan Shang product
7.The weight: Wuxi co Qing nitrogen balance
8.The bearing: Japan NTN
9.The Internal protection: Total protection

Select the configuration:
1.M70B/M70A Mitsubishi
2.The CNC dividing head
3.NC rotary table
4.The chip cleaner
5.The taiwan famous brand manipulator knife storehouse
6.The fourth axis
7.The fifth axis

The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for
long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of
machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from
roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in
aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing,
oil, electronics and other industries.

Product main technical specifications:

Specifications	Units	VMC1580
X-axis travel	mm	1600
Y-axis travel	mm	800
Z-axis travel	mm	700
Table size	mm	1800×800
Maximum table load	kg	1500
T-slot (slot number×width×pitch)	mm	5-22-135
Spindle taper		BT50
Spindle power	kw	15/18.5
Maximum spindle speed	rpm	8000
Rapid traverse (X/Y/Z)	mm/min	15000
Rapid traverse (X/Y/Z)	mm/min	12000
Cutting feed	mm/min	1-5000
Spindle nose to table	mm	170-870
Spindle center to column surface distance rail	mm	800
Maximum tool diameter	mm	Φ127/Φ200
Maximum tool length	mm	350
Maximum tool weight	kg	15
Positioning accuracy	mm	±0.01
Repeat accuracy	mm	±0.0075
Machine weight	kg	14000
Dimensions	mm	426032502940

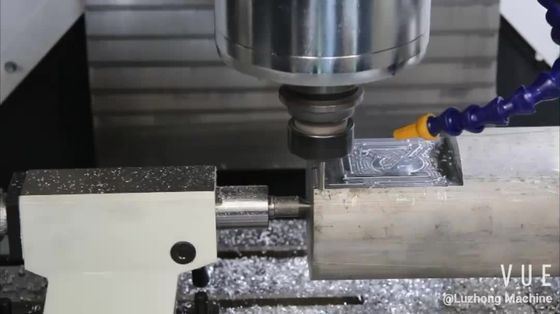

Details Display
