| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong Machine |
| Certification: | CE ISO |
| Model Number: | CK3040 |
| Price: | $26,600.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | Plywood case <br>30 Degree Slant Bed CNC Lathe CK3040 Turning Center Machine |
| Supply Ability: | 100 Set/Sets per Month 30 Degree Slant Bed CNC Lathe CK3040 Turning Center Machine |
| Condition: | New | Type: | TURNING CENTER |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 580 Mm | Max. Spindle Speed (r.p.m): | 4500 R.p.m |
| Machining Capacity: | Light Duty | Spindle Bore(mm): | 62 M'm |
| Width Of Bed (mm): | 300 Mm | Spindle Motor Power(kW): | 7.5 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 210 Mm | Travel (Z Axis)(mm): | 600 Mm |
| Positioning Accuracy (mm): | 0.01 Mm | Dimension(L*W*H): | 220*175*188CM |

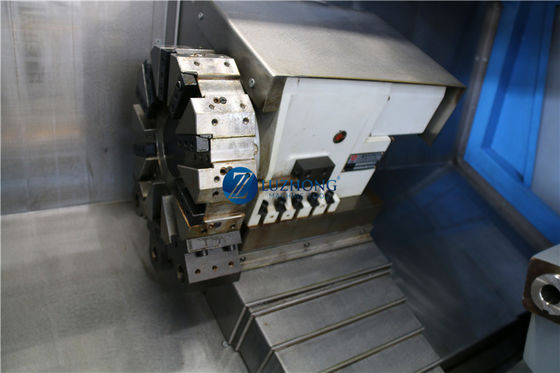

| Voltage: | 380V | Tool Post Stations: | 8 |
| Weight (KG): | 2800 | Warranty: | 1 Year |
| Applicable Industries: | Manufacturing Plant | Key Selling Points: | Competitive Price |
| Showroom Location: | India, UAE | Marketing Type: | New Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| CNC Or Not: | CNC | Automatic Grade: | Automatic |

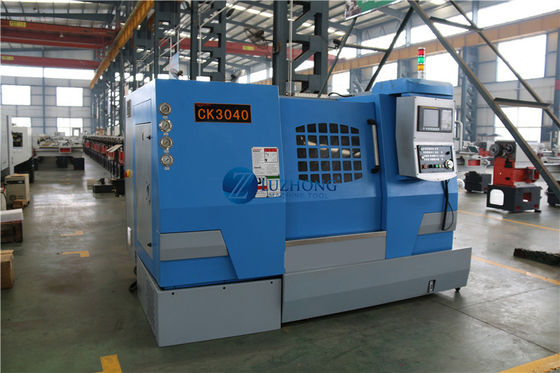

| Name: | 30 Degree Slant Bed CNC Lathe CK3040 Turning Center Machine | Spindle Speed: | 3500rpm |
| Max.workpiece Length: | 580mm | Chuck Size: | A2-6 |
| Spindle Bore: | 62mm | Dia.of Bar Through Spindle Bore: | 50mm |
| X Travel: | 210mm | Z Travel: | 600mm |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | India, UAE | Port: | Any Port In China |
Specification | Units | CK3040 | CK3040L |
Bed incline | ° | 30 | 30 |
Max.workpiece length | mm | 580 | 900 |
Cutting capacity over bed | mm | φ400 | φ400 |
Cutting capacity over support | mm | φ450 | φ450 |
Chuck size | A2-6 | A2-8 | |
Spindle motor power | kw | 7.5 | 7.5 |
spindle speeds | rpm | 4500 | 3500 |
Spindle bore | mm | φ62 | φ72 |
Dia.of bar through spindle bore | mm | φ50 | φ60 |
Rapid feed speed | m/min | 18 | 18 |
X travel | mm | 210 | 230 |
Z travel | mm | 600 | 900 |
Tailstock sleeve diameter | mm | 65 | 65 |
Tails stock sleeve travel | mm | 100 | 100 |
Tail stock travel | mm | 450 | 780 |
Tail stock taper | - | MT4 | MT4 |
Positioning accuracy | mm | ±0.008（X）±0.011（Z） | ±0.008（X）±0.011（Z） |
Repositioning accuracy | mm | ±0.003（X）±0.005（Z） | ±0.003（X）±0.005（Z） |
Machine dimensions(L*W*H) | mm | 2200x1750x1880 | 2200x1750x1880 |
Weight | T | 2.5/2.8 | 2.5/2.8 |
