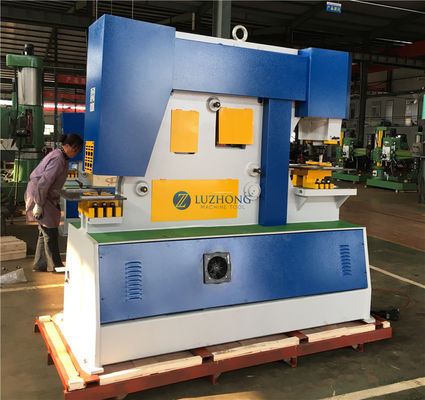

Q35Y-16 Hydraulic Iron worker punch and shear machine

Name: Q35Y-16 Hydraulic Iron worker punch and shear machine
Brand: Luzhong Machine Tool
SKU: Q35Y-16
Price: 8 USD
Availability: InStock
Rating: 4.5 (120 reviews)

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Luzhong Machine Tool
Certification:	CE ISO, CE
Model Number:	Q35Y-16

Payment & Shipping Terms:

Price:	$8,500.00/Sets >=1 Sets
Packaging Details:	plywood case <br>Q35Y-16 Hydraulic Iron worker punch and shear machine
Supply Ability:	100 Set/Sets per Month

Contact Now

Detailed Product Description

CNC Or Not:	Normal, Normal	Condition:	New, New
Machine Type:	Punching Machine	Power Source:	Pneumatic, Hydraulic
Dimension(LWH):	23559602090mm	Weight (T):	1.6
Key Selling Points:	Competitive Price	Warranty:	1 Year
Applicable Industries:	Manufacturing Plant	Showroom Location:	Indonesia, Russia
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Gear, Motor	Product Name:	Q35Y-16 Hydraulic Iron Worker Punch And Shear Machine
Weight:	1600kg	Voltage:	380V/220V Optional
Nominal Pressure:	600Kn	Maximum Plate Thickness:	16mm
After-sales Service Provided:	Online Support, Video Technical Support	After Warranty Service:	Video Technical Support, Online Support
Local Service Location:	Indonesia, Russia, UAE	Nominal Force (kN):	600
Port:	Qingdao Port

The main performance characteristics：

using hydraulic transmission, is the latest products of domestic combined punching and shearing machine, the plate, square steel, round steel, steel, steel, steel cutting, punching, shear modulus and shear block device is equipped with.
2 this machine can according to the basic parameters of the specifications of the plate cutting, section cutting and punching die shear, etc.. Punching and die cutting station, if the replacement of the other parts of the machine, but also for the special shape of the shear, stamping, bending plate 90 degrees, V shaped notch shearing process. The machine adopts hydraulic transmission, the whole machine is reasonable in structure, light in weight, low in noise, light and reliable.

No.	Name		Unite	Specifications
1	Nominal pressure		KN	600
2	Maximum plate thickness		mm	16
3	Size of one stroke cut		Mm	16x250 8X480
4	Sheet strength		N/mm²	≤450
5	Slide stroke		mm	80
6	Slip an piece of itinerary time		times/min	8
7	throat depth		mm	300
8	Punching thickness		mm	16
9	Maximum punch diameter		mm	25
10	Machine weight		KG	1600
11	Motor	Model	Y112M-4
11	Motor		Power	Kw	4.0
12	Dimension		mm	16408301670

Details Display

Recommend Products

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
