| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong Machine |
| Certification: | CE ISO |
| Model Number: | CK5112 CK5116 CK5120 |
| Price: | $55,200.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | The Package of our cnc vertical lathe machines is export standard plywood case with iron pallet below ,very strong and durable .<br>The machine will be shipped to customers by land freight or sea freight . |
| Supply Ability: | 100 Set/Sets per Month CK5108 CK5112 CK5116 CNC Parallel Vertical Lathe Machine Siemens |
| Condition: | New | Type: | VERTICAL |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 1000 Mm | Max. Spindle Speed (r.p.m): | 200 R.p.m |
| Machining Capacity: | Heavy Duty | Spindle Bore(mm): | 300 M'm |
| Width Of Bed (mm): | 800 Mm | Spindle Motor Power(kW): | 22 |
| No. Of Spindles: | Single | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 700 Mm | Travel (Z Axis)(mm): | 650 Mm |
| Voltage: | 220V/380V | Tool Post Stations: | 6, 4 |
| Weight (KG): | 9000 | Warranty: | 1 Year |
| Applicable Industries: | Manufacturing Plant | Key Selling Points: | Competitive Price |

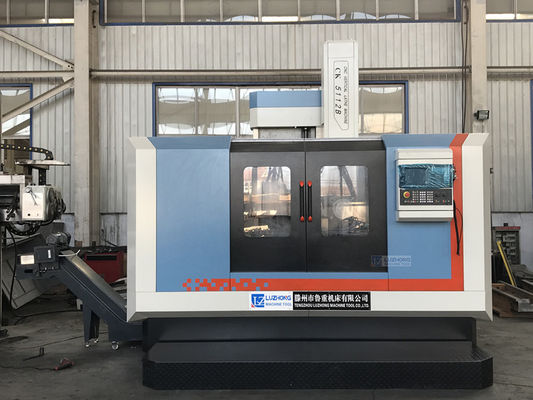

| Showroom Location: | India, UAE | Name: | CK5112 CK5116 CNC Parallel Vertical Lathe Machine Siemens |
| Power(W): | 22/30kw | After-sales Service Provided: | Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | India, UAE |
| Max. Swing Diameter (mm): | 1250 Mm | Port: | Any Port In China |
|
Specification
|
Unit
|
CK5112D
|
CK5116D
|
CK5120D
|
CK5123D
|
CK5125D
|
CK5126D
|
|
Table diameter
|
mm
|
1000
|
1400
|
1800
|
2000
|
2250
|
2250
|
|
Max. turning diameter
|
mm
|
1250
|
1600
|
2000
|
2300
|
2500
|
2600
|
|
Max. height of workpiece
|
mm
|
1000
|
1000
|
1250
|
1350
|
1600
|
1600
|
|
Max. weight of workpiece
|
T
|
3.2
|
5
|
8
|
8
|
8
|
8
|
|
Tool section size
|
mm
|
30x40
|
30x40
|
30x40
|
30x40
|
30x40
|
30×40
|
|
Max. Cutting force of vertical tool post
|
N
|
25000
|
25000
|
25000
|
25000
|
25000
|
25000
|
|
Max.torque of table
|
N·m
|
25000
|
25000
|
32000
|
32000
|
32000
|
32000
|
|
Table speed steps
|
|
4 steps stepless
|
4 steps stepless
|
4 steps stepless
|
4 steps stepless
|
4 steps stepless
|
4 steps stepless
|
|
Table speed range
|
r/min
|
6.3-200
|
5-160
|
3.2-100
|
3.2-100
|
2-63
|
2-63
|
|
Max.travel of vertical tool post(horizontal)
|
mm
|
700
|
915
|
1115
|
1300
|
1400
|
1400
|
|
Max.travel of vertical tool post(verticall)
|
mm
|
650
|
800
|
800
|
800
|
800
|
800
|
|
Vertical tool post feed range
|
mm/min
|
0.5-2000
|
0.5-2000
|
0.5-2000
|
0.5-2000
|
0.5-2000
|
0.5-2000
|
|
Vertical tool post feed steps
|
|
stepless
|
stepless
|
stepless
|
stepless
|
stepless
|
stepless
|
|
Tool post rapid traverse
|
mm/min
|
2000
|
2000
|
2000
|
2000
|
2000
|
2000
|
|
Max.travel of cross beam
|
mm
|
650
|
650
|
850
|
850
|
1250
|
1250
|
|
Cross beam lifting speed
|
mm/min
|
440
|
440
|
440
|
440
|
440
|
440
|
|
Main motor power
|
Kw
|
22
|
30
|
30
|
30
|
37
|
37
|
|
Cross beam lifting motor power
|
Kw
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
|
CNC coordinate axis
|
|
XZ
|
XZ
|
XZ
|
XZ
|
XZ
|
XZ
|
|
CNC system
|
|
GSK 980TDC
|
GSK 980TDC
|
GSK 980TDC
|
GSK 980TDC
|
GSK 980TDC
|
GSK 980TDC
|
|
Positioning accuracy
|
mm
|
0.03
|
0.03
|
0.03
|
0.03
|
0.03
|
0.03
|
|
Repeat positioning accuracy
|
Mm
|
0.015
|
0.015
|
0.015
|
0.015
|
0.015
|
0.015
|
|
Machine weight
|
T
|
8.5
|
13
|
17
|
18
|
23
|
23
|
|
Overall dimensions
|
mm
|
2360*2277*3403
|
3200*2570*3150
|
3200*2800*3250
|
3200*2850*3350
|
3300*4000*3500
|
3300*4000*3500
|
