| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong Machine Tool |
| Certification: | CE ISO |
| Model Number: | CK518A |
| Price: | $65,000.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | Plywood case with iron pallet below ,very strong and durable . <br>The machine will be shipped to customers by land freight or sea freight .<br>CK518A Taiwan cnc lathe machine price vertical lathe cnc |
| Supply Ability: | 100 Set/Sets per Month |
| Condition: | New | Type: | VERTICAL |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 650 Mm | Max. Spindle Speed (r.p.m): | 800 R.p.m |
| Machining Capacity: | Medium Duty | Spindle Bore(mm): | 130 M'm |
| Width Of Bed (mm): | 800 Mm | Spindle Motor Power(kW): | 22 |
| No. Of Spindles: | Single | Max. Turned Length (mm): | 650 |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 600 Mm |
| Travel (Z Axis)(mm): | 650 Mm | Dimension(L*W*H): | 3100*2600*2900mm |
| Voltage: | 380V | CNC Control System: | Siemens |
| Tool Post Stations: | 12, 8, 6, 4 | Weight (KG): | 7500 |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
| Key Selling Points: | Competitive Price | Showroom Location: | Indonesia, Russia |

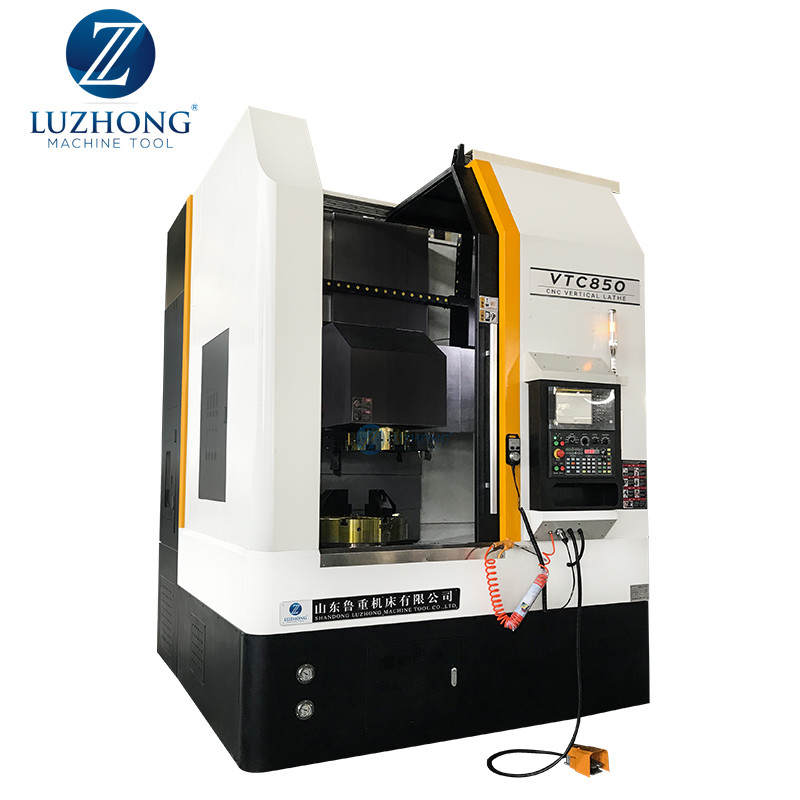

| Name: | VTC850 Taiwan Cnc Lathe Machine Price Vertical Lathe Cnc | Max. Turning Dia.: | 900mm |
| Max. Turning Height: | 600mm | Chuck Dia.: | 800mm |
| Spindle Speed: | 800 Stepless (variable)speed | Max.torque Of Spindle: | 885Nm |
| X Axis Rapid Traverse: | 15 M/min | Z Axis Rapid Traverse: | 12 M/min |
| Turret/tool Post: | 8 Position Hydraulic Turret | Tool Section Size: | 32x32 |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Indonesia, Russia, UAE | Max. Swing Diameter (mm): | 900 Mm |
| Port: | Qingdao Port |
|
Specification
|
Unit
|
VTC850
|
|
Max. swing diameter
|
Mm
|
900
|
|
Max. turning diameter
|
Mm
|
850
|
|
Max.travel of vertical tool post(vertical)
|
mm
|
650
|
|
Max.travel of vertical tool post(horizontal)
|
mm
|
-50-550
|
|
Distance between tool post and the surface of chuck
|
mm
|
100-750
|
|
Spindle nose
|
-
|
A2-11
|
|
spindle bearing configuration
|
-
|
NN3036 180X280X74 Double row cylindrical roller bearing
|
|
|
|
NN3030 150X225X56 Double row cylindrical roller bearing
|
|
|
|
234436 180X280X120 Two-way thrust angular contact ball bearing
|
|
Spindle speed range
|
r/min
|
50-800
|
|
Max.torque of spindle
|
NM
|
885
|
|
Main motor power
|
KW
|
22/30(Rated speed 600, rated torque 350NM)
|
|
X axis rapid traverse
|
M/min
|
15
|
|
Z axis rapid traverse
|
M/min
|
12
|
|
Cutting feed speed
|
Mm/min
|
0.1-5000
|
|
X axis motor power and torque
|
Kw/Nm
|
2.4/15
|
|
Z axis motor power and torque
|
Kw/Nm
|
2.8/18
|
|
Turret/tool post
|
-
|
8 position hydraulic turret
|
|
Tool section size
|
mm
|
32x32
|
|
Diameter of manual 4-jaw chuck
|
mm
|
630
|
|
Positioning accuracy
|
mm
|
±0.008
|
|
Repeat positioning accuracy
|
mm
|
±0.005
|
|
Machine weight
|
KG
|
8800
|
|
Overall dimensions
|
mm
|
2800×2000×3200
|
