| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong Machine |
| Certification: | CE ISO |
| Model Number: | VTC700 |
| Price: | $58,500.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | The Package of our cnc vertical lathe machines is export standard plywood case with iron pallet below ,very strong and durable .<br>The machine will be shipped to customers by land freight or sea freight . |
| Supply Ability: | 100 Set/Sets per Month CK518B CK5110 Full Cover Small CNC Vertical Lathe Price |
| Condition: | New | Type: | VERTICAL |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 550 | Max. Spindle Speed (r.p.m): | 1000 R.p.m |
| Machining Capacity: | Heavy Duty | Spindle Bore(mm): | 100 |
| Width Of Bed (mm): | 300 Mm | Spindle Motor Power(kW): | 15 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 420 Mm | Travel (Z Axis)(mm): | 550 Mm |
| Voltage: | 220V/380V | Tool Post Stations: | 8 |
| Weight (KG): | 5800 | Warranty: | 1 Year |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Key Selling Points: | Competitive Price |
| Showroom Location: | Indonesia, India, UAE | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine |
| Name: | VTC700 Full Cover Small CNC Vertical Lathe Price | Keyword: | Cnc Vertical Lathe Machine |
| Max.swing Dia.: | 700mm | Max. Swing Diameter (mm): | 700 |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Indonesia, India, UAE | Port: | Any Port In China |
|
Specifications
|
Unit
|
VTC700
|
|
Max.turning diameter of workpiece
|
mm
|
700
|
|
Max.rotating diameter
|
mm
|
650
|
|

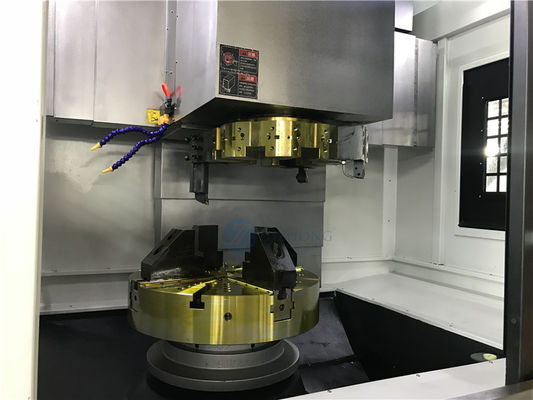

Hydraulic chuck diameter
|
mm
|
500
|
|
Spindle speed
|
rpm
|
500-1000
|
|
Cutting feed speed
|
mm/min
|
0.1-1000
|
|
Tool post vertical travel
|
mm
|
550
|
|
Tool post horizontal travel
|
mm
|
420
|
|
X axis fast traverse speed
|
mm/min
|
15000
|
|
Z axis fast traverse speed
|
mm/min
|
12000
|
|
Tool post type
|
|
4 station electric tool post
|
|
Tool shank size
|
|
32×32mm
|
|
Main motor power
|
|
11/15kW(low speed large torque output 210NM )
|
|
Feed motor power/torque
|
|
2.4KW/15N.M
|
|
Coolant pump motor power/liquid
|
|
250W 40L/min
|
|
Positioning accuracy
|
mm
|
0.03mm
|
|
Repeat positioning accuracy
|
mm
|
0.015 mm
|
|
Weight
|
kg
|
Around 5800kg
|
|
Dimension
|
mm
|
2250×1960×2650
|
