| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong Machine |
| Certification: | CE ISO |
| Model Number: | CK5225 CK5240 CK5250 CK5263 |
| Price: | $113,500.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | The Package of our cnc vertical lathe machines is export standard plywood case with iron pallet below ,very strong and durable .<br>The machine will be shipped to customers by land freight or sea freight . |
| Supply Ability: | 100 Set/Sets per Month CK5225 CK5240 Double Column CNC Vertical Lathe Machines |
| Condition: | New | Type: | VERTICAL |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 1600 Mm | Max. Spindle Speed (r.p.m): | 63 R.p.m |
| Machining Capacity: | Heavy Duty | Spindle Bore(mm): | 200 M'm |
| Width Of Bed (mm): | 2000 Mm | Spindle Motor Power(kW): | 55 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 1400 Mm | Travel (Z Axis)(mm): | 1000 Mm |
| Voltage: | 220V/380V | Tool Post Stations: | 8, 6, 4 |
| Weight (KG): | 55000 | Warranty: | 1 Year |
| Applicable Industries: | Manufacturing Plant | Key Selling Points: | High Productivity |
| Showroom Location: | India, UAE | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |

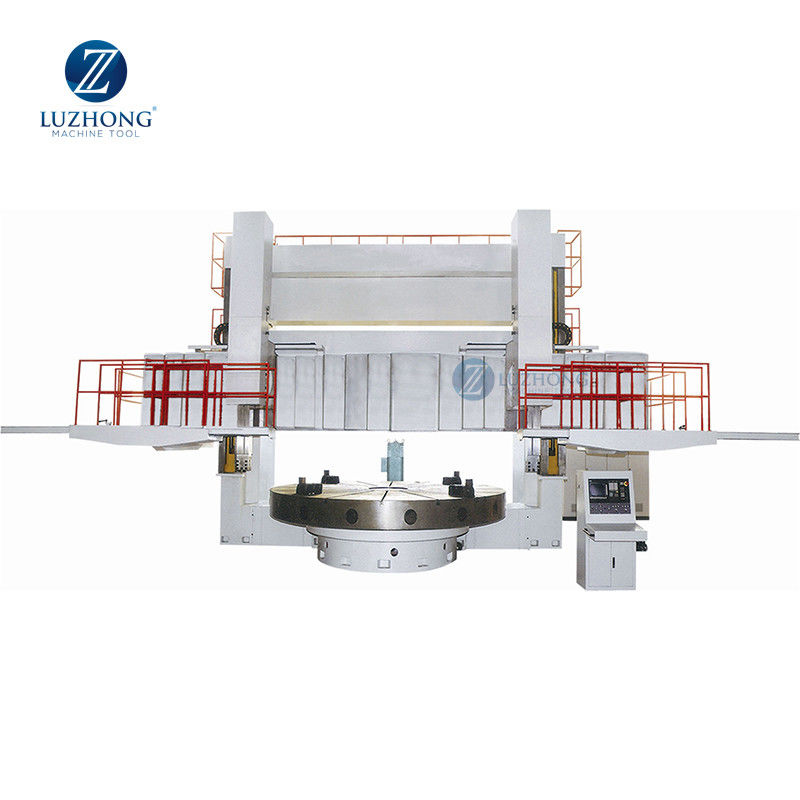

| Name: | CK5225 CK5240 Double Column CNC Vertical Lathe Machines | Keyword: | Cnc Vertical Lathe Machine |
| Max. Swing Diameter: | 2500/4000/5000/6000mm | Power(W): | 55kw |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | India, UAE | Max. Swing Diameter (mm): | 2500 Mm |
| Port: | Any Port In China |
|
Specification
|
Unit
|
CK5225D
|
CK5240D
|
CK5250D
|
CK5263D
|
|
Table diameter
|
mm
|
2250
|
3200
|
4500
|
5700
|
|
Max. turning diameter
|
mm
|
2500
|
4000
|
5000
|
6300
|
|
Max. height of workpiece
|
mm
|
1600
|
1600
|
2000
|
3150
|
|
Max. weight of workpiece
|
T
|
10
|
16
|
32
|
50
|
|
Table speed steps
|
|
4 steps stepless
|
4 steps stepless
|
4 steps stepless
|
4 steps stepless
|
|
Table speed range
|
rpm
|
2~63
|
2~63
|
0.5~40
|
0.5-40
|
|
Max.torque of table
|
KN·m
|
63
|
63
|
70
|
100
|
|
Max.cutting force of right vertical tool post
|
KN
|
35
|
35
|
35
|
40
|
|
Horizontal travel of right vertical tool post
|
mm
|
-50~1400
|
-50~2150
|
-50~2770
|
-50~3450
|
|
Vertical travel of right ram
|
mm
|
1000
|
1000
|
1250
|
1600
|
|
Right vertical tool post feed range
|
mm/min
|
0.1--500
|
0.1--500
|
0.1--500
|
0.1--500
|
|
Max.cutting force of left vertical tool post
|
KN
|
30
|
30
|
30
|
30
|
|
Horizontal travel of left vertical tool post
|
mm/min
|
-50~1400
|
-50~2150
|
-50~2770
|
-50~3450
|
|
Vertical travel of left ram
|
mm
|
1000
|
1000
|
1250
|
1600
|
|
Left vertical tool post feed range
|
mm/min
|
0.2--145
|
0.2--145
|
0.2--145
|
0.2--145
|
|
Swivel angle of vertical tool post
|
°
|
-30~+30
|
-30~+30
|
-30~+30
|
-30~+30
|
|
Left ram section size
|
mm
|
255×200
|
255×200
|
255×200
|
255×200
|
|
Tool section size
|
mm
|
40×50
|
40×50
|
40×50
|
40×50
|
|
Vertical tool post rapid traverse
|
mm/min
|
R:2000 L:1550
|
R:2000 L:1550
|
R:2000 L:1550
|
R:2000 L:1550
|
|
Max.travel of cross beam
|
mm
|
1250
|
1250
|
1650
|
2650
|
|
Cross beam lifting speed
|
mm/min
|
350
|
350
|
350
|
350
|
|
Cross beam lifting motor power
|
kw
|
11
|
11
|
11
|
11
|
|
Main motor power
|
kw
|
55
|
55
|
70
|
70
|
|
Overall dimensiont
|
mm
|
5180*4700*5300
|
5180*4700*5300
|
5180*4700*5300
|
5180*4700*5300
|
|
Machine weigh
|
T
|
35
|
43
|
65
|
90
|
