| Place of Origin: | Shandong, China |
| Brand Name: | LUZHONG |
| Certification: | CE ISO |
| Model Number: | TCK6350 |
| Price: | $16,000.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | plywood case<br>cnc lathe cam milling TCK6350 cnc vertical turning metal aluminium lathe |
| Supply Ability: | 200 Set/Sets per Month |
| Condition: | New | Type: | Horizontal |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 410 | Structure: | Slant Bed Lathe |
| Max. Spindle Speed (r.p.m): | 3000 R.p.m | Machining Capacity: | Heavy Duty |
| Spindle Bore(mm): | 66 | Width Of Bed (mm): | 300 Mm |
| Spindle Motor Power(kW): | 7.5 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 500 Mm |
| Travel (Z Axis)(mm): | 410 Mm | Dimension(L*W*H): | 2500x1600x1890 |
| Voltage: | 220V/380V | Tool Post Stations: | 8, 6, 4 |
| Weight (KG): | 2300 | Warranty: | 1 Year |
| Applicable Industries: | Manufacturing Plant | Key Selling Points: | Competitive Price |
| Showroom Location: | Indonesia, India, UAE | Marketing Type: | New Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |

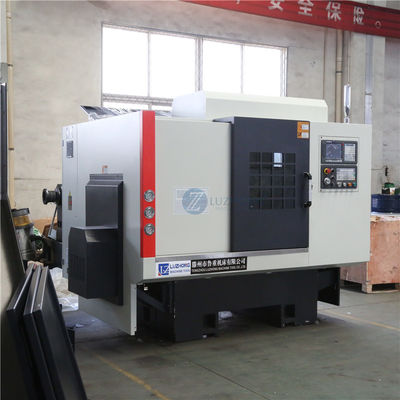

| Product Name: | Cnc Lathe Cam Milling TCK6350 Cnc Vertical Turning Metal Lathe | Machine Type: | Slant Bed Cnc Lathe Machine |
| Function: | Machining Metal | Precision: | High Precision |
| Color: | Custom-made | Control System: | SIEMENS GSK FANUC (optional) |
| Chuck: | 3-jaw Chuck | Turret Type: | 4/6/8 Station Electric Turret |
| Electric Elements: | Schneider | Spindle Speed: | 3000rpm |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | Indonesia, India, UAE | Port: | Any Port In China |
SPECIFICATIONS | Units | TCK6350 |
Swing over bed | mm | 520 |
Swing over cross slide | mm | 220 |
Distance between centers | mm | 410(turret 300) |
Spindle bore | mm | 66 |
Spindle nose type | - | A2-6 |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | 3000 |
Turret/tool post | - | Gang type |
Tool size | mm | 25 x 25 |
X axis travel | mm | 500 |
Z axis travel | mm | 500 |
X axis rapid traverse | mm/min | 18000 |
Z axis rapid traverse | mm/min | 18000 |
Main spindle motor | kw | 7.5 |
Guide rail type | - | Linear rail |
Machine weight | kg | 2900 |
Overall dimension | mm | 2500x1600x1890 |
