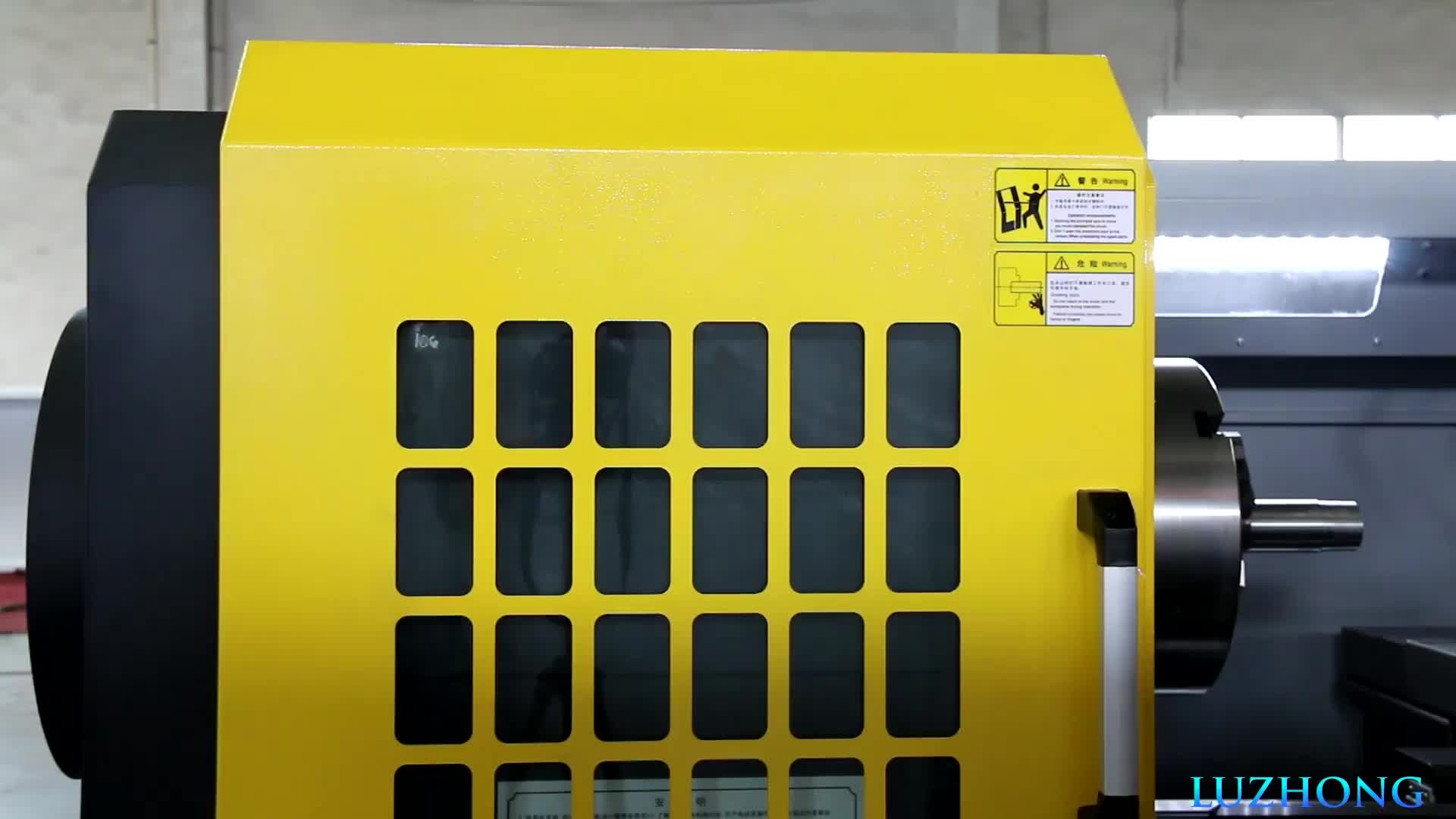

Performance CNC Metal Lathe Gsk Control CAK6150V

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Luzhong Machine
Certification:	CE ISO
Model Number:	vak6150v

Payment & Shipping Terms:

Price:	$11,000.00/Sets 1-1 Sets
Packaging Details:	Promotion Sale Lathe Machine CAK6150V CNC lathe machine price<br>Type of package: Plywood case<br>Packaging size: 295152175 CM(one set in one case)<br>N.W./G.W.: 2850 KGS

Contact Now

Detailed Product Description

Condition:	New	Type:	Horizontal
Year:	2019	Max. Length Of Workpiece (mm):	1000 Mm
Structure:	Flat Bed Lathe	Max. Spindle Speed (r.p.m):	1800 R.p.m
Machining Capacity:	Medium Duty	Spindle Bore(mm):	52 M'm
Width Of Bed (mm):	400 Mm	Spindle Motor Power(kW):	7.5
No. Of Spindles:	Single	Max. Turned Length (mm):	10000
Number Of Axes:	2	Travel (X Axis)(mm):	300 Mm
Travel (Z Axis)(mm):	1000 Mm	Positioning Accuracy (mm):	1800 Mm
Repeatability (X/Y/Z) (mm):	±0.005	Dimension(LWH):	2950/3610x1520x1820
Voltage:	Customer's Requirement	CNC Control System:	GSK
Toolpost Brand:	Taiwan	Tool Post Stations:	4
Weight (KG):	2850	Warranty:	1 Year
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , CNC Lathe With Gsk Control CAK6150V Cnc Lathe Mach	Key Selling Points:	Competitive Price
Showroom Location:	UAE	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Pump
CNC Or Not:	CNC	Automatic Grade:	Automatic
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support	Max.processing Length:	1000/1500/2000mm
Spindle Hole:	82 82/130(optional)	Spindle Motor:	7.5/11kw
Name:	CNC Lathe With Gsk Control CAK6150V Cnc Lathe Machine	Machine Type:	Japanese Lathe
Function:	Japan Lathe Machine	Precision:	Cheap Cnc Metal Lathe Machine Low Price With Ce Certificated
After Warranty Service:	Online Support	Local Service Location:	UAE
Max. Swing Diameter (mm):	500 Mm

Application:

Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing
,and also can process the single and multiple threads in metric ,inch and other standards.

Features:

1. A high strength ,widening the carriage ,suitable for heavy cutting

2.Four station electric tool post
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration: hydraulic chuck

SPECIFICATIONS	Units	CAK6150V	CAK6160V
Swing over bed	mm	500	600
Swing over cross slide	mm	280	395
Distance between centers	mm	1000/1500/2000	1000/1500/2000
Spindle bore	mm	82 (Optional 130)	82 (Optional 130)
Spindle bore taper	-	Metric φ90/1:20	Metric φ90/1:20
Spindle nose type	-	A2-8(A2-11)	A2-8(A2-11)
Spindle speed steps	-	Stepless	Stepless
Spindle speed range	rpm	1800 (Optional 800)	1800 (Optional 800)
Turret/tool post	-	Electric 4 position	Electric 4 position
Tool size	mm	25 x 25	25 x 25
X axis travel	mm	300	300
Z axis travel	mm	1000/1500/2000	1000/1500/2000
X axis rapid traverse	mm/min	6000	6000
Z axis rapid traverse	mm/min	10000	10000
Tailstock quill diameter	mm	75	75
Tailstock quill taper	-	MT5	MT5
Tailstock quill travel	mm	200	200
Main spindle motor	kw	7.5	7.5/11
Coolant pump motor	kw	0.125	0.125
Weight for 1000	kg	2900	3200
Weight for 1500	kg	3300	3500
Weight for 2000	kg	3700	4000
Dimension for 1000	mm	2950x1700x1800	2950x1800x1900
Dimension for 1500	mm	3650x1700x1800	3650x1800x1900
Dimension for 2000	mm	4250x1700x1800	4250x1800x1900

Details Display

Recommend Products

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
