| Place of Origin: | Shandong, China |
| Brand Name: | LUZHONG |
| Certification: | CE/ISO |
| Model Number: | CQK6136 |
| Price: | $10,250.00/Sets 1-9 Sets |
|---|---|
| Packaging Details: | Machine: table cnc lathe CQK6136 educational small lathe cnc turning metal<br>Package:one machine with one plywood case and steel set below |
| Supply Ability: | 100 Set/Sets per Month table cnc lathe CQK6136 educational small lathe cnc turning meta |
| Condition: | New | Type: | Horizontal |
|---|---|---|---|
| Year: | 2020 | Max. Length Of Workpiece (mm): | 500 |
| Structure: | Flat Bed Lathe | Max. Spindle Speed (r.p.m): | 2000 R.p.m |
| Machining Capacity: | Medium Duty | Spindle Bore(mm): | 60 |
| Width Of Bed (mm): | 360 Mm | Spindle Motor Power(kW): | 4 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 180 Mm | Travel (Z Axis)(mm): | 500 Mm |
| Dimension(L*W*H): | 1500x1150x1850 | Voltage: | Customized Option |
| Tool Post Stations: | 4 | Weight (KG): | 900 |
| Warranty: | 13 Months | Applicable Industries: | Manufacturing Plant |
| Key Selling Points: | Competitive Price | Showroom Location: | Indonesia, Russia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 13 Months |

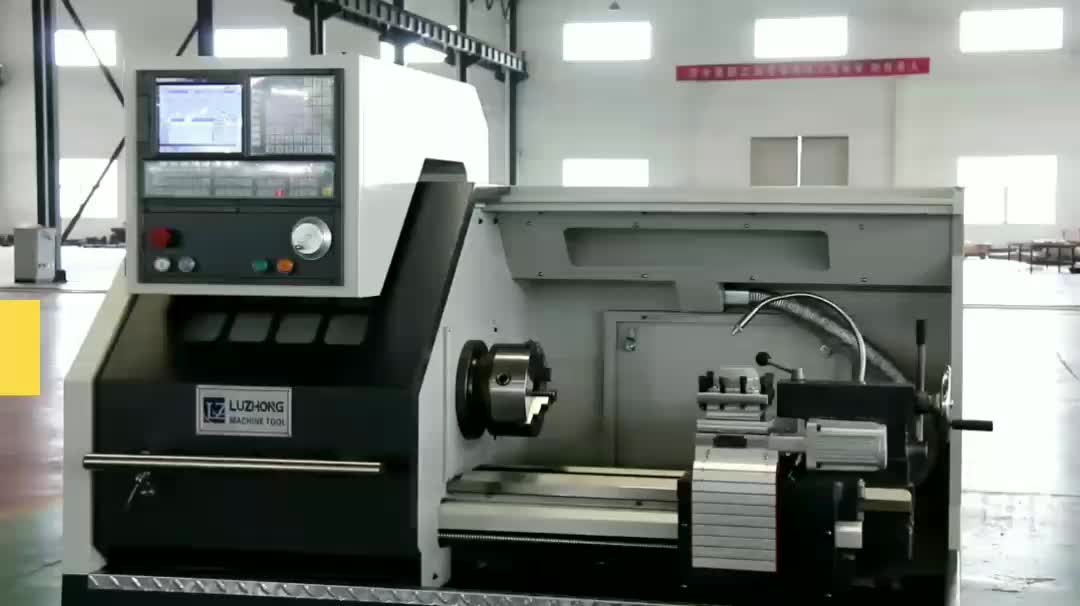

| Core Components: | Motor | Product Name: | Table Cnc Lathe CQK6136 Educational Small Lathe Cnc Turning Metal |
| Color: | Customer Optional | Packing: | Plywood Case |
| Swing Over Bed: | 360mm | Swing Over Cross Slide: | 150mm |
| Distance Between Centers: | 500/700mm | Spindle Bore: | 60mm |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Indonesia, Russia |
| Port: | Qingdao Port |
SPECIFICATIONS | Units | CQK6136 |
Swing over bed | mm | 360 |
Swing over cross slide | mm | 150 |
Distance between centers | mm | 500/700 |
Spindle bore | mm | 60 |
Spindle bore taper | - | MT6 |
Spindle nose type | - | A2-5 |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | 100-2000 |
Turret/tool post | - | Eletric 4 position |
Tool size | mm | 20 x 20 |
X axis travel | mm | 180 |
Z axis travel | mm | 500/750 |
X axis rapid traverse | mm/min | 6000 |
Z axis rapid traverse | mm/min | 8000 |
Tailstock quill diameter | mm | Φ50 |
Tailstock quill taper | - | MT4 |
Tailstock quill travel | mm | 90 |
Main spindle motor | kw | 4 |
Coolant pump motor | kw | 0.09 |
Machine weight | kg | 900 |
Overall dimension | mm | 1500/1800x1150x1850 |
