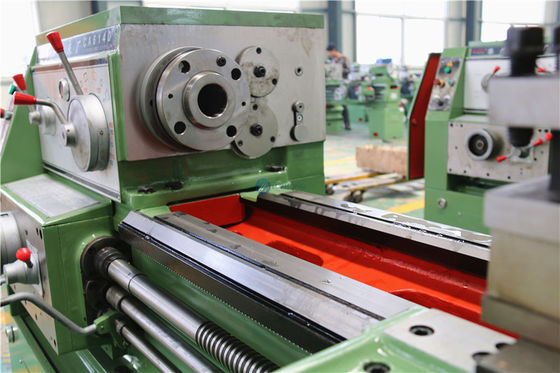

Mini CNC Metal Lathe CA6140 Turning Lathe

Product Details:

Place of Origin:	China
Brand Name:	LUZHONG
Certification:	CE ISO
Model Number:	C6140

Payment & Shipping Terms:

Price:	$8,200.00/Sets >=1 Sets
Packaging Details:	Machine model:Lathe machine with bar feeder CA6140 baoji lathe machine with ce certificated<br>Package:one machine with one plywood case and steel set below

Contact Now

Detailed Product Description

Condition:	New	Type:	Horizontal
Year:	2019	Max. Length Of Workpiece (mm):	750
Structure:	Flat Bed Lathe	Max. Spindle Speed (r.p.m):	36 R.p.m
Machining Capacity:	Light Duty	Spindle Bore(mm):	52
Width Of Bed (mm):	400 Mm	Spindle Motor Power(kW):	7.5
No. Of Spindles:	Single	Max. Turned Length (mm):	700
Number Of Axes:	2	Travel (X Axis)(mm):	210 Mm
Travel (Z Axis)(mm):	720 Mm	Positioning Accuracy (mm):	0.05
Repeatability (X/Y/Z) (mm):	0.02	Dimension(LWH):	250015001650
Voltage:	Customriszed	Tool Post Stations:	4
Weight (KG):	1600	Warranty:	1 Year
Applicable Industries:	Manufacturing Plant	Key Selling Points:	Competitive Price
Showroom Location:	UAE	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, Pump, Gear
CNC Or Not:	CNC	Automatic Grade:	Manual
Name:	Lathes Metal Machines Mini CA6140 Turning Lathe	Machine Type:	Flat Bed CNC Lathe
Function:	Machining Metal	Control System:	SIEMENS GSK FANUC (optional)
Precision:	High Precision	Color:	Customized Option
Max.swing Over Cross Slide:	180mm	Distance Between Centers:	1000/1500
Max. Swing Diameter (mm):	400	After-sales Service Provided:	Online Support, Video Technical Support
After Warranty Service:	Online Support	Local Service Location:	UAE
Port:	Lathes Metal Machines Mini CA6140 Turning Lathe

Specification

The main performance characteristics:
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to
undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching
depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot
weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing
and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision
grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the
wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
Application:
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other
rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the
drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc
parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency
quenching, wear-resistant durable.
3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation,
humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the
machine tool is tested to ensure that the machine tool has good stability and reliability.

Product main technical parameters:

Specifications			CA6140 CA6140B
Max. Swing over bed			400mm
Max. Swing over carriage			210mm
Max. swing in gap			--
Effective gap length			--
Max. length of work piece			750mm/1000mm/1500mm/2000mm /2200mm/3000mm/4000mm
Width of bed			400mm
Section of turning tool			25x25mm
Spindle	Spindle speeds	10-1400rpm/16-1400rpm(24steps)
		Hole through spindle	52mm. (80mm)
		Spindle taper	NO.6(Φ90 1:20)
Feed	Number of feeds	64 kinds(for each)
		Range of metric threads(kinds)	(1-192mm)44kinds
		Range of inch threads(kinds)	(2-24tpi)21kinds
		Range of module threads(kinds)	0.25-48 (Moduie39kinds)
		Range of pitch threads(kinds)	1-96DP(37kinds)
Tailstock	Max. tail stock spindle travel	150mm
		Tail stock spindle diameter	75mm
		Taper of tail stock spindle center hole	NO.5
Main motor			7.5KW(10HP)
Packing dimensions (LWHmm)	Overall dimensions for750mm	2550x1140x1750
		Overall dimensions for1000mm	2700x1140x1750
		Overall dimensions for1500mm	3200x1140x1750
		Overall dimensions for2000mm	3700x1140x1750
		Overall dimensions for2200mm	4030x1140x1750
		Overall dimensions for3000mm	4850x1140x1750
		Overall dimensions for4000mm	5800x1140x1750
Weight (kg)	Length	G.W N.W.
		Weight for 750mm	2100 1990
		Weight for 1000mm	2190 2070
		Weight for 1500mm	2350 2220
		Weight for 2000mm	2720 2570
		Weight for 2200mm	2800 2600
		Weight for 3000mm	3300 3200
		Weight for 4000mm	3500 3400

Details Display

Recommend Products

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
