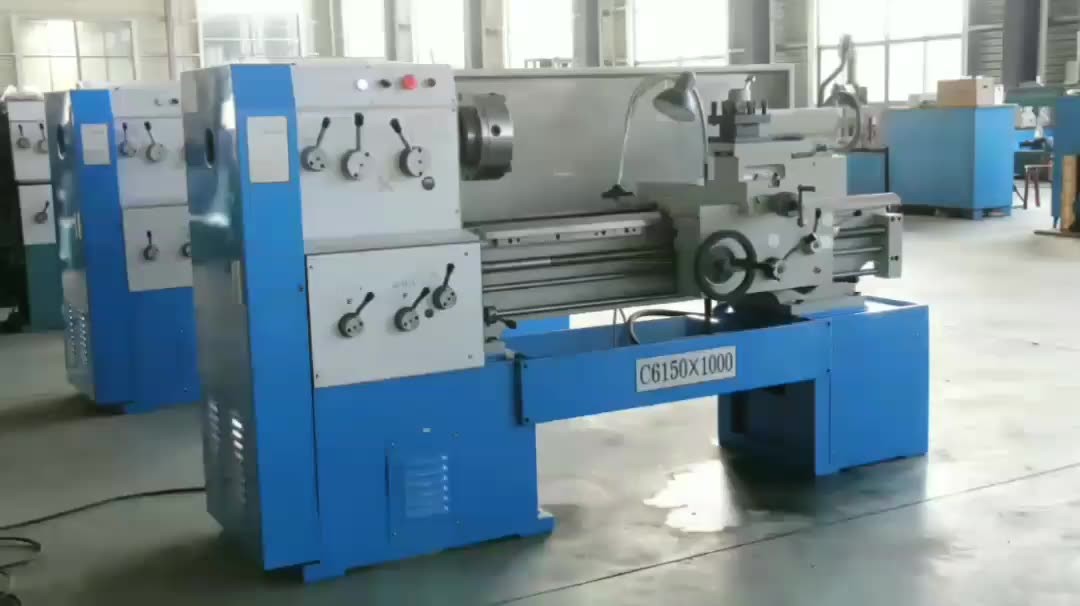

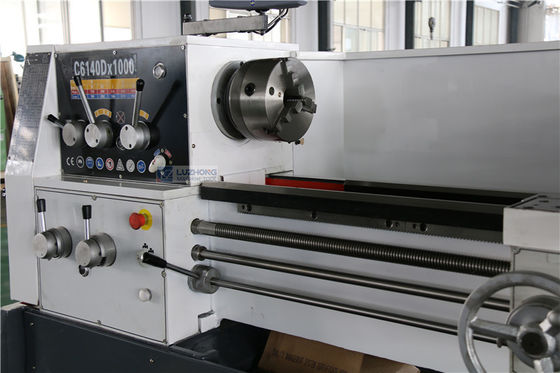

Cq9325 bench lathe C6140D chinese mini lathe alloy wheel lathe

Name: Cq9325 bench lathe C6140D chinese mini lathe alloy wheel lathe
Brand: LUZHONG
SKU: C6140D
Price: 6 USD
Availability: InStock
Rating: 4.8 (183 reviews)

Product Details:

Place of Origin:	China
Brand Name:	LUZHONG
Certification:	CE ISO
Model Number:	C6140D

Payment & Shipping Terms:

Price:	$6,650.00/Sets >=1 Sets
Packaging Details:	Machine model:Cq9325 bench lathe C6140D chinese mini lathe alloy wheel lathe <br>Package:one machine with one plywood case and steel set below

Contact Now

Detailed Product Description

Condition:	New	Type:	Horizontal
Year:	2019	Max. Length Of Workpiece (mm):	750
Structure:	Flat Bed Lathe	Max. Spindle Speed (r.p.m):	36 R.p.m
Machining Capacity:	Light Duty	Spindle Bore(mm):	52
Width Of Bed (mm):	360 Mm	Spindle Motor Power(kW):	3
No. Of Spindles:	Single	Max. Turned Length (mm):	750
Number Of Axes:	2	Travel (X Axis)(mm):	200 Mm
Travel (Z Axis)(mm):	850 Mm	Positioning Accuracy (mm):	0.05
Repeatability (X/Y/Z) (mm):	0.02	Dimension(LWH):	250015001650
Voltage:	Customriszed	Tool Post Stations:	4
Weight (KG):	1700	Warranty:	1 Year
Applicable Industries:	Manufacturing Plant	Key Selling Points:	Competitive Price
Showroom Location:	UAE	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Gear
CNC Or Not:	CNC	Automatic Grade:	Manual
Name:	Cq9325 Bench Lathe C6140D Chinese Mini Lathe Alloy Wheel Lathe	Machine Type:	Flat Bed CNC Lathe
Function:	Machining Metal	Control System:	SIEMENS GSK FANUC (optional)
Precision:	High Precision	Color:	Customized Option
Max.swing Over Cross Slide:	180mm	Distance Between Centers:	1000/1500
Max. Swing Diameter (mm):	400	After-sales Service Provided:	Online Support, Video Technical Support
After Warranty Service:	Online Support	Local Service Location:	UAE

Specification

Product description:
C series universal lathe is suitable for internal and external turning ,tapering ,and other rotating faces ,metric ,module and
inch threads ,as well as drilling and pull oil slot ,widely used in axisal and plates processing .
The lathe bed is wider than normal machine ,owns high rigidity ,guideway after high frequency quenching ,with high durability.
Easy operated ,one handle to operate quite convenient .
Own high rigidity in both structure and transfer parts ,high percent the use of power make the machine cutting easily .Lots of
optional accessories for you to choose .
Whole side test before leave the factory ,make sure the machine owns high stability and more reliable .

Product main technical Specifications:

Specifications			C6132D	C6136D	C6140D
capacity	Max.Swing over bed	320mm	360mm	400mm
	Max.swing over carriage	180mm	200mm	240mm
		Max.length of workpiece	750/1000mm
		Width of bed	312mm
		Section of turning tool	20x20mm
Spindle	Spindle speeds	30-1600r/min(12 steps)
		Spindle hole	Ø52mm
		Spindle nose	C6
		Spindle taper	MT6
Feed	NO. of feed	Longitudinal(0.039-1.05mm),cross(0.019-0.52mm)
		Range of metric threads	0.5-20mm(25 kinds)
		Range of inch threads	80-1.75TPI(35 kinds)
		Range of module threads	0.25-10mm
		Range of diametral threads	160-3.5DP(30 kinds)
Tailstock	Max.tailstock spindle travel	100mm
		Tailstock spindle diameter	Ø60mm
		Taper of tailstock	MT4
Main motor			3/4kw
Packing dimensions	Overall dimension for 750mm	2000x1130x1540
Packing dimensions		Overall dimension for 1000mm	2250x1130x1540
Weight	Overall dimension for 750mm	1400kg	1500kg	1700kg
Weight		Overall dimension for 1000mm	1500kg	1600kg	1800kg
