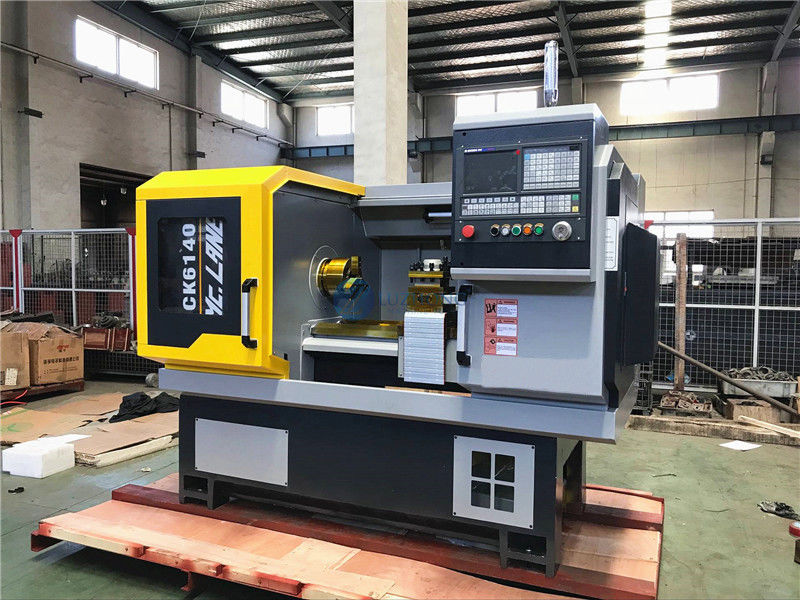

Sk50p cnc lathe ck0640a cnc lathe small cnc lathe with bar feeder

Product Details:

Place of Origin:	China
Brand Name:	LUZHONG
Certification:	CE ISO
Model Number:	CK6140V

Payment & Shipping Terms:

Price:	$9,900.00/Sets >=1 Sets
Supply Ability:	Sk50p cnc lathe ck0640a cnc lathe small cnc lathe with bar feede

Contact Now

Detailed Product Description

Condition:	New	Type:	Horizontal
Year:	2019	Max. Length Of Workpiece (mm):	750
Structure:	Flat Bed Lathe	Max. Spindle Speed (r.p.m):	1800 R.p.m
Machining Capacity:	Light Duty	Spindle Bore(mm):	48
Width Of Bed (mm):	300 Mm	Spindle Motor Power(kW):	11
No. Of Spindles:	Single	Number Of Axes:	2
Travel (X Axis)(mm):	280 Mm	Travel (Z Axis)(mm):	750 Mm
Repeatability (X/Y/Z) (mm):	0.005	Dimension(LWH):	250015001650
Voltage:	Customriszed	Tool Post Stations:	4
Weight (KG):	1800	Warranty:	1 Year
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant	Key Selling Points:	Automatic
Showroom Location:	UAE	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, Gear
CNC Or Not:	CNC	Automatic Grade:	Semi-automatic
Name:	Sk50p Cnc Lathe Ck0640a Cnc Lathe Small Cnc Lathe With Bar Feeder	Machine Type:	Flat Bed CNC Lathe
Function:	Machining Metal	Control System:	SIEMENS GSK FANUC (optional)
Precision:	High Precision	Color:	Customized Option
Max.swing Over Cross Slide:	180mm	Distance Between Centers:	1000/1500
Max. Swing Diameter (mm):	400	After-sales Service Provided:	Online Support, Video Technical Support
After Warranty Service:	Online Support	Local Service Location:	UAE
Port:	Sk50p Cnc Lathe Ck0640a Cnc Lathe Small Cnc Lathe With Bar Feeder

Specification

Features:
Four position electric turret
Frequency conversion stepless speed regulation
Standard configuration :manual chuck
Optional configuration:spring collet ,hydraulic chuck ,automatic feeding device ,gang type tools

Application:
Machine can automatically process the inside and outside cylinder surface ,cone surface ,circular arc surface ,end face ,such as
processing ,and also can process the single and multile threads in metric ,inch and other standards .
Product main technical Specifications:

Specifications	Unit	CK6140V
Max.swing over bed	mm	400
Max.swing over cross slide	mm	240
X/Z axis travel	mm	280/750
Spindle nose		A2-6
Spindle bore		48/82
Bar capacity		41/65
Spindle speed		48
Spindle speed	rpm	150-2000/150-1800
Chuck size	mm	200/250
Spindle motor	KW	5.5/7.5
X/Z axis repeatability	mm	±0.005
X/Z axis feed motor torque	N.m	4/6
X/Z axis rapid traverse	m/min	8/10
Tailstock sleeve dia.	mm	60
Tailstock sleeve travel	mm	100
Tailstock sleeve taper	#	MT4
Tool post type		4 station electtic tool post
Cutting tool shape size	mm	20x20
Guide form		Double Mountain Guide
Total power capacity	KVA	11
Machine dimension(L×W×H)	mm	2200X1160X1620
N.W.	kg	1800

Details Display

Recommend Products

Company Profie

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
