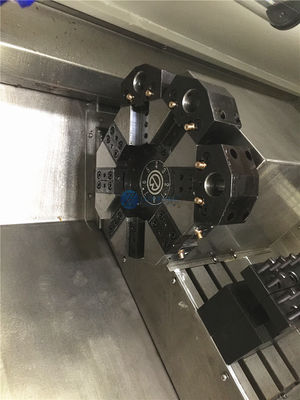

High Rigidity Slant Bed CNC Lathe TCK36 Turning Center With Linear Guideway

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Luzhong Machine
Certification:	CE ISO

Payment & Shipping Terms:

Price:	$30,000.00/Sets >=1 Sets
Packaging Details:	High Rigidity Slant Bed CNC Lathe TCK36 Turning Center With Linear Guideway<br>Type of package: Plywood case<br>Packaging size: 220017501880 mm(one set in one case)<br>N.W./G.W.:1800 KGS
Supply Ability:	200 Set/Sets per Month High Rigidity Slant Bed CNC Lathe TCK36 Turning Center With Line

Contact Now

Detailed Product Description

Condition:	New	Type:	Horizontal
Max. Length Of Workpiece (mm):	350 Mm	Structure:	Slant Bed Lathe
Max. Spindle Speed (r.p.m):	4000 R.p.m	Machining Capacity:	Medium Duty
Spindle Bore(mm):	38 M'm	Width Of Bed (mm):	400 Mm
Spindle Motor Power(kW):	7.5	No. Of Spindles:	Single
Number Of Axes:	3	Travel (X Axis)(mm):	260 Mm
Travel (Z Axis)(mm):	250 Mm	Dimension(LWH):	220017501880
Voltage:	Customer's Requirement	Tool Post Stations:	6
Weight (KG):	2600	Warranty:	1 Year
Applicable Industries:	Manufacturing Plant	Key Selling Points:	Automatic
Showroom Location:	UAE	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Pump
CNC Or Not:	CNC	Automatic Grade:	Automatic
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support	Product Name:	Slant Bed CNC Lathe TCK36 Turning Center With Linear Guideway
Model:	TCK36	Keywords:	Lathe Machine
Keywords2:	Slant Bed CNC Lathe	Keywords3:	Turning Center
Max.swing Over Bed:	350	Max.swing Slide:	110
Max. Swing Diameter (mm):	460 Mm	After Warranty Service:	Online Support
Local Service Location:	UAE	Port:	Any Port Of China High Rigidity Slant Bed CNC Lathe TCK36 Turning Center With Linear Guideway

Product main features and uses:
The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts
of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic
processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is
high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.

Product main technical specifications:

Specification	Unit	TCK36
Max.swing over bed	mm	350
Max.swing slide	mm	110
Collet chuck		CL-36A5
Chuck size (optional)		6”
X travel	mm	260
Z travel	mm	250
Guide rail form		Taiwan guide rail
Spindle speeds	rpm	2500-4000
Spindle tube diameter	mm	38
Rapid feed speed	m/min	X:15 Z:20
X/Z motor range	Nm	6
Spindle motor power	kw	4
The cutter base from spindle center	mm	20
Tool section size	mm	20*20
Tools number		four
X/Z	mm	0.001
X/Z positioning accuracy	mm	±0.008
X/Z repositioning accuracy	mm	±0.002
Weight	T	1.8T
