| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong Machine |
| Certification: | CE ISO |
| Price: | $28,000.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | CNC lathe turning machine TCK500 CNC Lathe Machine For Making Car Wheels<br>Type of package: Plywood case<br>Packaging size: 2450*1600*1700CM(one set in one case)<br>N.W./G.W.:4200KGS |
| Supply Ability: | 100 Set/Sets per Month CNC lathe turning machine TCK500 CNC Lathe Machine For Making C |
| Condition: | New | Type: | TURNING CENTER |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 500 Mm | Max. Spindle Speed (r.p.m): | 2500 R.p.m |
| Machining Capacity: | Medium Duty | Spindle Bore(mm): | 56 M'm |
| Width Of Bed (mm): | 500 Mm | Spindle Motor Power(kW): | 7.5 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 220 Mm | Travel (Z Axis)(mm): | 500 Mm |
| Dimension(L*W*H): | 2450*1600*1700 | Voltage: | Customer's Requirement |
| Tool Post Stations: | 6 | Weight (KG): | 3600 |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
| Key Selling Points: | Automatic | Showroom Location: | UAE |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor | CNC Or Not: | CNC |
| Automatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |

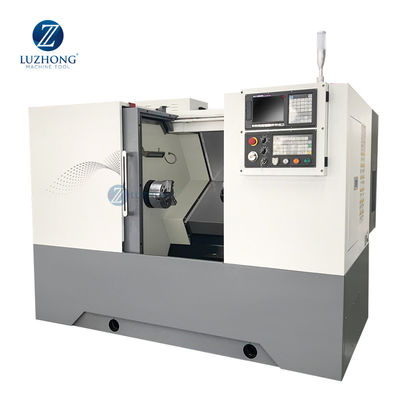

| Product Name: | TCK500 CNC Lathe Machine For Making Car Wheels | Model: | TCK500 |
| Standard Chuck: | 10" | Maximum Screw Diameter: | 520 |
| Max.machining Diameter: | 320 | Max.workpiece Length: | 500 |
| Spindle Tube Diameter: | 56 | Max. Swing Diameter (mm): | 500 Mm |
| After Warranty Service: | Online Support | Local Service Location: | UAE |
| Port: | Any Port Of China CNC Lathe Turning Machine TCK500 CNC Lathe Machine For Making Car Wheels |
|
SPECIFICATIONS
|
Units
|
TCK500
|
TCK630
|
|
TCK800
|
|
|
Swing over bed
|
mm
|
500
|
630
|
|
800
|
|
|
Swing over cross slide
|
mm
|
380
|
440
|
|
650
|
|
|
Distance between centers
|
mm
|
500/1000/1500/
2000/3000 |
1000/1500/2000/3000
|
|
1000/1500/2000/3000
|
|
|
Guideway width
|
°
|
45
|
45
|
|
45
|
|
|
Spindle bore
|
mm
|
82
|
105
|
|
105
|
|
|
Spindle speed steps
|
-
|
Stepless
|
Stepless
|
|
Stepless
|
|
|
Spindle speed range
|
rpm
|
35-3000
|
150-1500
|
|
50-1500
|
|
|
Chuck
|
in
|
10in Hydraulic chuck
|
15in Hydraulic chuck
|
|
15in Hydraulic chuck
|
|
|
Turret/tool post
|
-
|
Hydraulic turret 8position
|
/Hydraulic turret 8position
|
|
Hydraulic turret 12position
|
|
|
Tool shank size
|
mm
|
25 x 25
|
32 x 32
|
|
32 x 32
|
|
|
Boring tool holder size
|
mm
|
φ40
|
φ50
|
|
φ50
|
|
|
X axis travel
|
mm
|
300
|
335
|
|
400
|
|
|
Z axis travel
|
mm
|
500/1000/1500/
2000/3000 |
1000/1500/2000/3000
|
|
1000/1500/2000/3000
|
|
|
X axis rapid traverse
|
mm/min
|
10000
Linear guideway |
4000Hard
|
10000Linear
|
10000
Linear guideway |
|
|
Z axis rapid traverse
|
mm/min
|
15000
Linear guideway |
6000Hard
|
15000Linear
|
15000
Linear guideway |
|
|
Tailstock quill diameter
|
mm
|
φ75
|
φ130
|
|
φ130
|
|
|
Tailstock quill taper
|
-
|
MT5
|
MT5
|
|
MT5
|
|
|
Tailstock quill travel
|
mm
|
150
|
150
|
|
150
|
|
|
Main spindle motor
|
kw
|
15
|
15
|
|
22
|
|
|
Coolant pump motor
|
kw
|
0.37
|
0.37
|
|
0.37
|
|
|
Weight for 500
|
kg
|
6000
|
6500
|
|
7000
|
|
|
Weight for 1000
|
kg
|
6500
|
7000
|
|
7500
|
|
|
Weight for 1500
|
kg
|
7000
|
7500
|
|
8000
|
|
|
Weight for 2000
|
kg
|
7500
|
8000
|
|
9000
|
|
|
Weight for 3000
|
kg
|
8500
|
9000
|
|
9500
|
|
|
Dimension for 500
|
mm
|
4350x1800x1800
|
-
|
|
-
|
|
|
Dimension for 1000
|
mm
|
4850x1800x1800
|
4850x2050x2300
|
|
4850x2570x2400
|
|
|
Dimension for 1500
|
mm
|
5350x1800x1800
|
5350x2050x2300
|
|
5350x2570x2400
|
|
|
Dimension for 2000
|
mm
|
5850x1800x1800
|
5850x2050x2300
|
|
5850x2570x2400
|
|
|
Dimension for 3000
|
mm
|
6850x1800x1800
|
6850x2050x2300
|
|
6850x2570x2400
|
|
