| Place of Origin: | Shandong, China |
| Brand Name: | Luzhong Machine |
| Certification: | CE ISO |
| Model Number: | TCK420 500 520 |
| Price: | $19,900.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | cnc lathe machine manufacturer TCK420 TCK500 TCK520 cnc turning machine<br>Type of package: Plywood case<br>Packaging size: 2450*1600*1700CM(one set in one case)<br>N.W./G.W.:4200KGS |
| Supply Ability: | 100 Set/Sets per Month cnc lathe machine manufacturer TCK420 TCK500 TCK520 cnc turning |
| Condition: | New | Type: | TURNING CENTER |
|---|---|---|---|
| Year: | 2019 | Max. Length Of Workpiece (mm): | 400 Mm |
| Max. Spindle Speed (r.p.m): | 3000 R.p.m | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | 66 M'm | Width Of Bed (mm): | 400 Mm |
| Spindle Motor Power(kW): | 5.5 | No. Of Spindles: | Single |
| Max. Turned Length (mm): | 400 | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 160 Mm | Travel (Z Axis)(mm): | 400 Mm |
| Positioning Accuracy (mm): | 0.006 | Repeatability (X/Y/Z) (mm): | 0.003 |
| Dimension(L*W*H): | 2450*1600*1700 | Voltage: | Customer's Requirement |
| CNC Control System: | GSK | Toolpost Brand: | Hongda |
| Tool Post Stations: | 6 | Weight (KG): | 3000 |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
| Key Selling Points: | Automatic | Showroom Location: | UAE |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor | CNC Or Not: | CNC |
| Automatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
| Product Name: | Cnc Lathe Machine Manufacturer TCK420 TCK520 Cnc Turning Machine | Model: | TCK420 TCK500 TCK520 |
| Standard Chuck: | 10" | Maximum Screw Diameter: | 520 |
| Max.machining Diameter: | 320 | Max.workpiece Length: | 500 |
| Machine Type: | Cnc Lathe Machine | Max. Swing Diameter (mm): | 420 Mm |
| After Warranty Service: | Online Support | Local Service Location: | UAE |
| Port: | Any Port Of China Cnc Lathe Machine Manufacturer TCK420 TCK500 TCK520 Cnc Turning Machine |
|
Specification
|
Unit
|
TCK420
|
TCK500
|
TCK520
|
|
Max.swing over bed
|
mm
|
420
|
500
|
520
|
|
Max.swing over cross slide
|
mm
|
200
|
220
|
320
|
|
Max.processing length
|
mm
|
400
|
500
|
500
|
|
X/Z axis max.travel
|
mm
|
160/400
|
220/500
|
220/500
|
|
Spindle nose
|
|
A2-6
|
A2-6
|
A2-8
|
|
Spindle bore
|
mm
|
66
|
66
|
80
|
|
Bar capacity
|
mm
|
50
|
50
|
60
|
|
Max.spindle speed
|
rpm
|
3000
|
3000
|
2500
|
|
Chuck
|
in
|
8
|
8
|
10
|
|
Spindle motor power
|
kw
|
5.5
|
7.5
|
7.5
|
|
X/Z axis repeatability
|
mm
|
+/-0.003
|
0.003
|
0.003
|
|
X/Z axis feed motor torque
|
N.M
|
5/7.5
|
7.5/7.5
|
7.5/7.5
|
|
X/Z rapid traverse
|
M/min
|
12
|
10
|
10
|
|
Tailstock travel
|
mm
|
350
|
350
|
350
|
|
Quill travel
|
mm
|
90
|
90
|
100
|
|
Tailstock taper
|
|
MT4
|
MT5
|
MT5
|
|

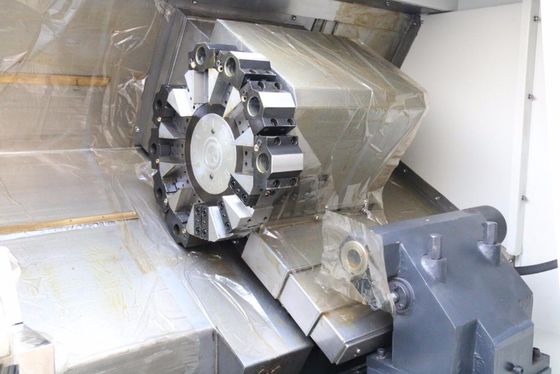

Tool post type
|
mm
|
8 station hydraulic turret
|
8 station hydraulic turret
|
8 station hydraulic turret
|
|
Tool post size
|
mm
|
20x20
|
25x25
|
25x25
|
|
Guide form
|
|
30° degree
|
30° degree
|
30° degree
|
|
Guide rail movement way
|
|
Linear guide rail
|
Linear guide rail
|
Linear guide rail
|
|
Total power capacity
|
KVA
|
11
|
15
|
15
|
|
Machine dimensions(L*W*H)
|
mm
|
2300*1500*1650
|
2450*1600*1700
|
2450*1600*1700
|
|
Weight
|
kg
|
3000
|
4000
|
4200
|
