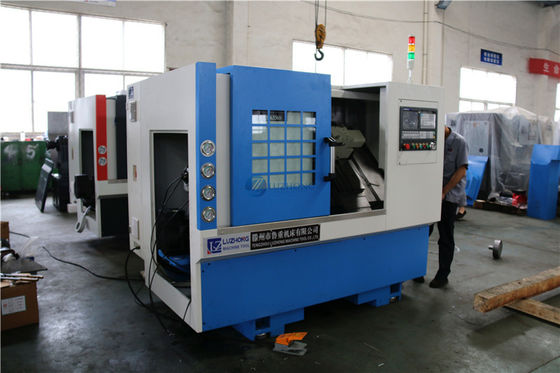

Slant Bed CNC Lathe SCK6339 Turning Center

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Luzhong
Certification:	CE ISO

Payment & Shipping Terms:

Price:	$13,000.00/Sets >=1 Sets
Packaging Details:	Slant bed cnc turning lathe SCK6339 Chinese cnc lathes<br>Type of package: Plywood case<br>Packaging size: 250013401710CM(one set in one case)<br>N.W./G.W.: KGS
Supply Ability:	400 Set/Sets per Month Slant bed cnc turning lathe SCK6339 Chinese cnc lathes

Contact Now

Detailed Product Description

Condition:	New	Type:	TURNING CENTER
Max. Length Of Workpiece (mm):	400 Mm	Max. Spindle Speed (r.p.m):	4000 R.p.m
Machining Capacity:	Medium Duty	Spindle Bore(mm):	48 M'm
Width Of Bed (mm):	400 Mm	Spindle Motor Power(kW):	5.5
No. Of Spindles:	Single	Number Of Axes:	2
Travel (X Axis)(mm):	400 Mm	Travel (Z Axis)(mm):	500 Mm
Dimension(LWH):	250013401710	Voltage:	Customer's Requirement
Tool Post Stations:	6	Weight (KG):	2500
Warranty:	1 Year	Applicable Industries:	Manufacturing Plant
Key Selling Points:	Automatic	Showroom Location:	UAE
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor, Gear	CNC Or Not:	CNC
Automatic Grade:	Semi-automatic	After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support
Product Name:	Slant Bed Cnc Turning Lathe SCK6339 Chinese Cnc Lathes	Model:	SCK6339
Color:	Optional	Max.swing Over Bed:	390
Max.swing Over Cross Slide:	130	Max.swing Over Carriage:	390
Max.turning Length:	400(Equipped With A Knife)/300(Tower With A Knife)	After Warranty Service:	Online Support
Local Service Location:	UAE	Max. Swing Diameter (mm):	390 Mm
Port:	Any Port Of China Slant Bed Cnc Turning Lathe SCK6339 Chinese Cnc Lathes

Product main features and uses:
45 degree slanting bed high precision Taiwan rail line chip quantity and convenient, right row of chips and chip at the back of
the type can choose a spindle unit for heavy cutting and high speed
The machine used in automobile, motorcycle, electronics, aerospace, military, oil and other industries, and the conical surface of
the rotating parts, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic
processing, with 45 degrees high rigidity of the whole bed, high precision main shaft unit, using Taiwan rail line, to ensure high
rigidity spindle center close to a human operator, loading and unloading of work piece is more convenient.
Product main technical specifications:

Specification	Unit	SCK6339
Max. swing over bed	mm	390
Max. swing over cross slide	mm	130
Max. swing over carriage	mm	390
Max. turning length	mm	200/400(Equipped with a knife)/300(Tower with a knife)
Spindle speed	rpm	4000
Spindle speed step		step less
Spindle drive ratio		1:1.17
Spindle nose form (optional chuck)		A2-5(6”)
Spindle bore	mm	48
Spindle tube diameter	mm	40
Spindle motor power	kw	3.7 Servo
Positioning accuracy	mm	±0.005/100
Repositioning accuracy	mm	±0.003
X Travel	mm	400
Z Travel	mm	500
Fast feed speed	m/min	20
Cutting feed speed	mm/min	1-15000
Knife tower working digit		8
The tool body size	mm	20*20
Boring bar diameter	mm	32
Tailstock		No
The bed form and inclination		45°
Total power supply capacity	KVA	250013401710
Machine dimensions(LWH)	mm	9

Details Display

Recommend Products

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
