Cnc Machining Slant Bed CNC Lathe Customized Turning Lathe TCK520

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Luzhong Machine
Certification:	CE ISO

Payment & Shipping Terms:

Price:	$19,900.00/Sets >=1 Sets
Packaging Details:	cnc machining customized turning lathe TCK520 cnc centre lathe machine<br>Packaging size: 245016001700CM(one set in one case)<br>N.W./G.W.:4200KGS
Supply Ability:	100 Set/Sets per Month cnc machining customized turning lathe TCK520 cnc centre lathe

Contact Now

Detailed Product Description

Condition:	New	Type:	TURNING CENTER
Max. Length Of Workpiece (mm):	500 Mm	Max. Spindle Speed (r.p.m):	2500 R.p.m
Machining Capacity:	Medium Duty	Spindle Bore(mm):	80 M'm
Width Of Bed (mm):	400 Mm	Spindle Motor Power(kW):	7.5
No. Of Spindles:	Single	Number Of Axes:	2
Travel (X Axis)(mm):	220 Mm	Travel (Z Axis)(mm):	500 Mm
Dimension(LWH):	245016001700	Voltage:	Customer's Requirement
Tool Post Stations:	6	Weight (KG):	3000
Warranty:	1 Year	Applicable Industries:	Manufacturing Plant
Key Selling Points:	Automatic	Showroom Location:	UAE
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Motor	CNC Or Not:	CNC
Automatic Grade:	Automatic	After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support
Product Name:	Customized Turning Lathe TCK520 Cnc Centre Lathe Machine	Model:	TCK520
Keywords:	Lathe	Keywords 2:	Cnc Turning Center With Price
Keywords 3:	Taiwan Cnc Lathe Machine Price	Standard Chuck:	10"
Max. Swing Diameter (mm):	520 Mm	After Warranty Service:	Online Support
Local Service Location:	UAE	Port:	Any Port Of China Cnc Machining Customized Turning Lathe TCK520 Cnc Centre Lathe Machine

Product main features and uses:

This is a high speed, high accuracy, high reliability of slant bed lathe spindle structure as a unit, motor speed by multi wedge
belt movement to the main spindle, can achieve the highest speed, workpiece clamping selection of hydraulic chuck, clamping is
more convenient because of the, precision is high, operation is more labor-saving, spindle bearing structure by 2 after a total of
5 2 angular contact bearings, both high-speed and high rigidity. The machine tool adopts 30 degrees sliding saddle, linear guide,
rigid, feed fast, easy to discharge. X and Z to the screw are arranged evenly in the hands of the middle plate plate, smooth
movement, speed, 8 station hydraulic turret tool change fast and steady, high precision, can choose the nearest knife, installed
capacity tool hydraulic tailstock, ease of operation; closed protection, no oil leakage of leakage, both green and beautiful.

Product main specifications:

Specification	Unit	TCK520
Standard chuck		10”
Maximum screw diameter	mm	520
Max.machining diameter	mm	320
Max.workpiece length	mm	500
Spindle tube diameter	mm	56
Positioning accuracy	mm	0.01
Repositioning accuracy	mm	±0.003
X Travel	mm	220
Z Travel	mm	500
Spindle speeds	rpm	2500
Spindle speed step		Continuously
Spindle nose		A2-8
Spindle bore	mm	80
Spindle motor power	kw	7.5
Knife tower working digit		8 Station
The tool body size	mm	25*25
Boring bar diameter	mm	40
Tailstock travel	mm	350
Tailstock taper		MT5
Tailstock sleeve travel	mm	100
Fast feed speed	m/min	20
Cutting feed speed	mm/min	1-15000
Total power supply capacity	kva	14
Air pressure requirement	mpa/I/min	0.5/100
Cutting water tank capacity	L	100
Machine dimensions(LWH)	mm	245016001700
Weight	kg	4200

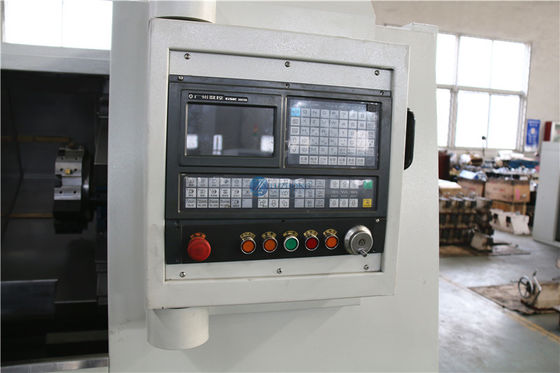

Details Display

Recommend Products

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
