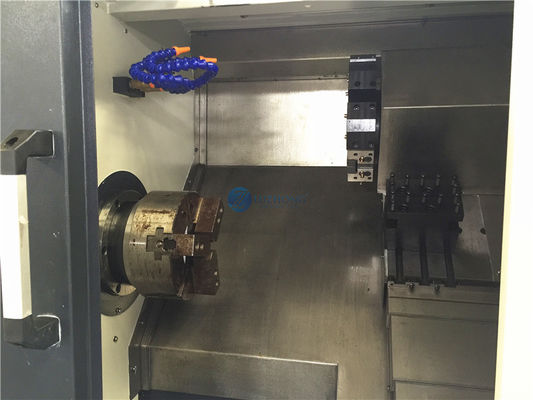

Torno Cnc SCK46 Cnc Lathe Machine With Bar Feeder

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Luzhong Machine Tool
Certification:	CE ISO

Payment & Shipping Terms:

Price:	$23,500.00/Sets >=1 Sets
Packaging Details:	Torno cnc SCK46 cnc lathe machine with bar feeder<br><br>The High Precision Metal SCK46 Micro Slant Bed CNC Lathe Machine for sale will be shipped to customers by land freight or sea freight .
Supply Ability:	50 Set/Sets per Month Torno cnc SCK46 cnc lathe machine with bar feeder

Contact Now

Detailed Product Description

Condition:	New	Type:	TURNING CENTER
Max. Length Of Workpiece (mm):	450 Mm	Max. Spindle Speed (r.p.m):	4000 R.p.m
Machining Capacity:	Medium Duty	Spindle Bore(mm):	42 M'm
Width Of Bed (mm):	500 Mm	Spindle Motor Power(kW):	5.5
No. Of Spindles:	Single	Number Of Axes:	2
Travel (X Axis)(mm):	350 Mm	Travel (Z Axis)(mm):	280 Mm
Dimension(LWH):	2100x2000x1650mm	Voltage:	220V/380V
Tool Post Stations:	6	Weight (KG):	3000
Warranty:	1 Year	Applicable Industries:	Manufacturing Plant
Key Selling Points:	Automatic	Showroom Location:	UAE
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Motor	CNC Or Not:	CNC
Automatic Grade:	Automatic	After-sales Service Provided:	No Overseas Service Provided, Online Support, Video Technical Support
Name:	Torno Cnc SCK46 Cnc Lathe Machine With Bar Feeder	Max.swing Slide:	140mm
Collet Chuck:	CL-42A5	Chuck Size (optional):	8"
X Travel:	350mm	Z Travel:	280/350mm
Guide Rail Form:	Taiwan Guide Rail	Max. Swing Diameter (mm):	450 Mm
After Warranty Service:	Online Support	Local Service Location:	UAE
Port:	Any Port In China Torno Cnc SCK46 Cnc Lathe Machine With Bar Feeder

Product features:
45 degree slant bed
High rigidity cast iron
High accuracy Taiwan linear guide ways
inter
Application:
The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts
of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic
processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is
high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.
Product main technical specifications:

Specification	Units	TCK46
Max.swing over bed	mm	460
Max.swing slide	mm	140
Collet chuck		CL-42A5
Chuck size (optional)		8”
X travel	mm	350
Z travel	mm	280/350
Guide rail form		Taiwan guide rail
Spindle speeds	rpm	2500-4000
Spindle tube diameter	mm	42
Rapid feed speed	m/min	X:15 Z:20
X/Z motor range	Nm	6
Spindle motor power	kw	5.5
The cutter base from spindle center	mm	25
Tool section size	mm	25*25
Tools number		Gang type 4 tools
X/Z repositioning accuracy	mm	±0.003
Machine dimension(LWH)	mm	2100x2000x1650
Weight	T	2.2T

Details Display

Recommend Products

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
