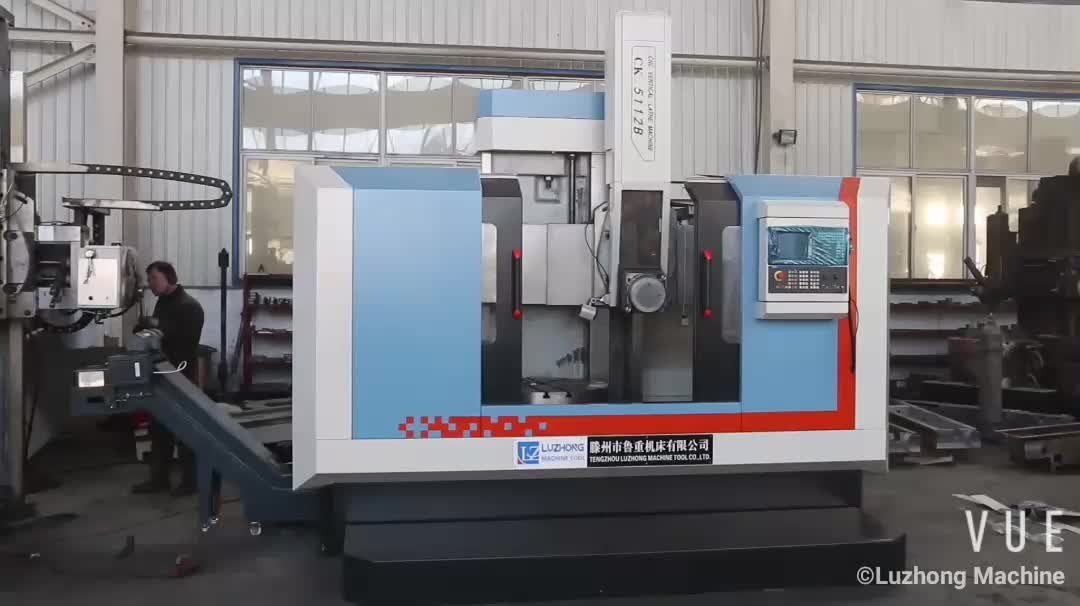

The machine consists of a bed, a base, a work platform, a beam, a beam lifting mechanism, a vertical tool holder, a numerical control system, a ball screw, a servo motor, a hydraulic system, an electrical system, and a button station.
The servo motor is decelerated by the planetary reducer to increase the torque, and then the ball screw is driven to drive the slide and the ram to move, and the X and Z axis feeds are realized. The Y axis uses a T ram.
Horizontal and vertical manual feed is achieved by electronic handwheel manipulation.
The beam is enlarged by the hydraulic cylinder through the lever and pushes the inclined iron. The beam is firmly clamped on the column, and the button is lifted and pressed on the button to change the direction of the oil through the electromagnetic slide valve, so that the beam is relaxed and lifted by the motor. mo
